Same model may have multiple batches, images only for reference.

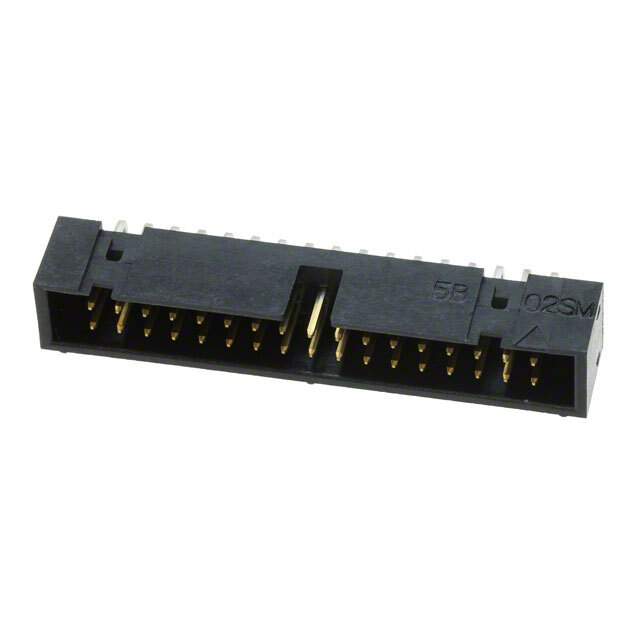

HIF3FC-34PA-2.54DS(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3FC-34PA-2.54DS(71)

Part No HIF3FC-34PA-2.54DS(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 2.54MM / Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
Datasheet
HIF3FC-34PA-2.54DS(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number HIF3
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *HIF3FC-34PA-2.54DS(71),*HIF3FC-34PA-2.54DS(71)-ND,H123853,HIF3FC-34PA-2.54DS(71)-ND,616-0067-6-71,-HIF3FC-34PA-2.54DS(71)
Standard Package 60
Win Source Part Number 1332817-HIF3FC-34PA-2.54DS(71)
Ultra Librarian 3D Model Ultra Librarian HIF3FC-34PA-2.54DS(71) CAD Model

Description

The Hirose Electric Co Ltd HIF3FC-34PA-2.54DS(71) is a 2-row, 34-position male pin header connector with a pitch of 2.54mm.

  • Manufacturer: Hirose Electric Co Ltd
  • Rows: 2
  • Positions: 34
  • Type: Male Pin Header
  • Pitch: 2.54mm
  • Fastening Type: Push-pull
  • Design: Shrouded 4-wall
  • Feature: Keying slot
  • Contact Shape: Square
  • Contact Material: Brass
  • Contact Finish: Gold
  • Insulator Material: Polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 200V
  • Current Rating: 1A
  • Temperature Range: -55°C to 85°C
  • Application: Board-to-board or cable
  • Mounting: Through hole or right angle
  • Insulation Height: 8.51mm
  • RoHS Compliant: Yes
