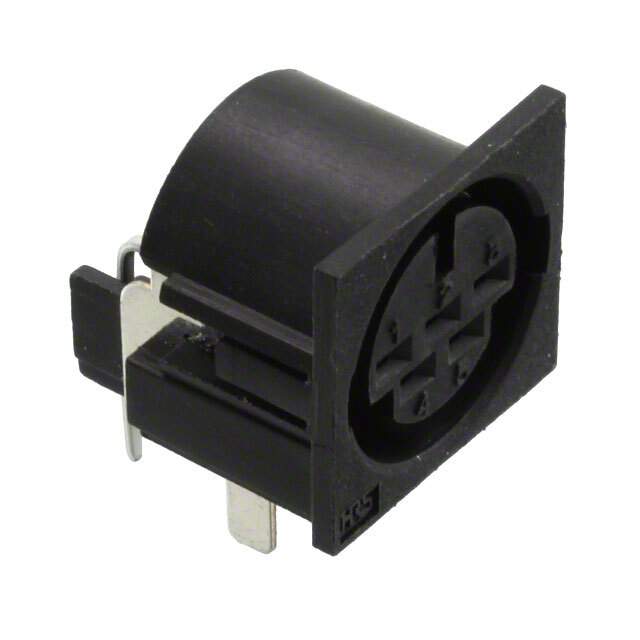

HR12-10R-5SDL(71) Real Image
Same model may have multiple batches, images only for reference.

HR12-10R-5SDL(71)

Part No HR12-10R-5SDL(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 5POS TIN SOLDER / 5 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HR12
Package Tray
Product Status Last Time Buy
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert 10
Mounting Type Through Hole, Right Angle
Mounting Feature Flange
Termination Solder
Fastening Type Snap-In
Orientation Keyed
Primary Material Plastic
Shell Material Polybutylene Terephthalate (PBT)
Contact Finish - Mating Tin
Color Black
Material Flammability Rating UL94 V-0
Features Ground
Shielding Shielded
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -15°C ~ 60°C
Contact Material Phosphor Bronze
Base Product Number HR12
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1338892-HR12-10R-5SDL(71)
Ultra Librarian 3D Model Ultra Librarian HR12-10R-5SDL(71) CAD Model

Description

The HR12-10R-5SDL(71) is a 5-position circular connector assembly from Hirose Electric Co Ltd.

  • Number of Positions: 5
  • Mounting Type: Through Hole, Right Angle
  • Shell Size: 10
  • Fastening Type: Snap-In
  • Connector Type: Receptacle, Female Sockets
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Shell Material: Polybutylene Terephthalate (PBT)
  • Shell Color: Black
  • Voltage Rating: 100VAC, 140VDC
  • Operating Temperature: -15°C to 60°C
