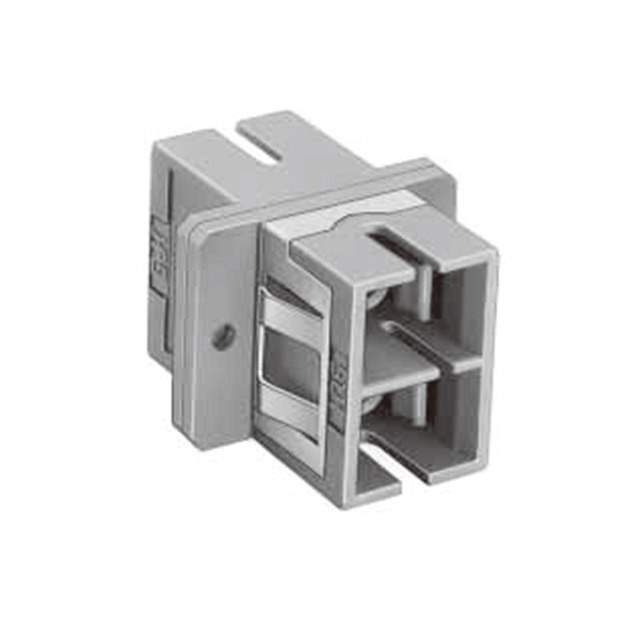

HSCH-2A-D2(P)(03) Real Image
Same model may have multiple batches, images only for reference.

HSCH-2A-D2(P)(03)

Part No HSCH-2A-D2(P)(03)
Manufacturer Hirose Electric Co Ltd
Catalog Fiber Optic Connectors - Adapters
Description CONN COUPLER RCPT SC-SC DUPLEX / Conn SC Adapter Single Mode Duplex F/F Crimp ST Panel Mount 0.5dB Bag
Datasheet
HSCH-2A-D2(P)(03) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series HSC
Type Coupler
Convert From (Adapter End) SC Receptacle
Convert To (Adapter End) SC Receptacle
Simplex/Duplex Duplex
Mounting Panel Mount, Flange; Snap-In
Housing Material Synthetic Resin
Ferrule Material Zirconia
Features Angle Polished, Dust Cap
Color Green
Material Flammability Rating UL94 V-0
Operating Temperature Range -25°C ~ 70°C
Win Source Part Number 772295-HSCH-2A-D2(P)(03)
Popularity Medium
Supply and Demand Status Limited
Family Name HSC
Introduction Date September 08, 2003
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HSCH-2A-D2(P)(03) CAD Model

Description

The Hirose Electric Co Ltd HSC series coupler is a high-quality product from Hirose Electric Co Ltd.

  • Housing Material: Synthetic Resin
  • Flammability Rating: UL94 V-0
  • Coupler Type: Duplex
  • Features: Angle Polished, Dust Cap
  • Operating Temperature: -25°C to 70°C
  • Mounting: Panel Mount, Flange, Snap-in
  • Adapter End: SC Receptacle
  • Introduction Date: September 08, 2003
  • Estimated EOL Date: 2025
