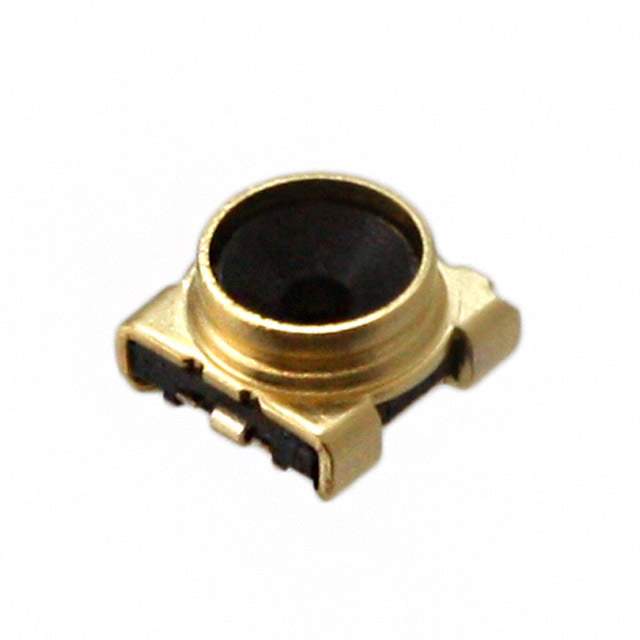

MS-156C Real Image
Same model may have multiple batches, images only for reference.

MS-156C

Part No MS-156C
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF)
Description CONN COAX SWITCH RCPT STR 50OHM / Subminiature Coaxial Switch 1.35 mm High, DC to 11 GHz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Connector Style Coaxial Switch - 4mm Plug Dia
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style SMD
Fastening Type Snap-On
Frequency - Max 11GHz
Number of Ports 1
Features Internal Switch
Housing Color Gold
Body Material Phosphor Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyamide (PA), Nylon 6T
Temperature Range - Operating -40°C ~ 85°C
Center Contact Material Copper Alloy
Mating Cycles 100
Insertion Loss 0.4dB
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806543-MS-156C
Ultra Librarian 3D Model Ultra Librarian MS-156C CAD Model

Description

The Hirose Electric Co Ltd MS-156C is a coaxial switch connector that is designed for various applications.

  • Package: Reel
  • Mounting: SMD
  • Switch: Internal
  • Connector Type: Receptacle female socket
  • Fastening: Snap-on
  • Contact Termination: Solder
  • Connector Style: Coaxial switch - 4mm plug dia.
  • Frequency Max: 11GHz
  • Impedance: 50Ohm
  • Supply and Demand Status: Balanced
