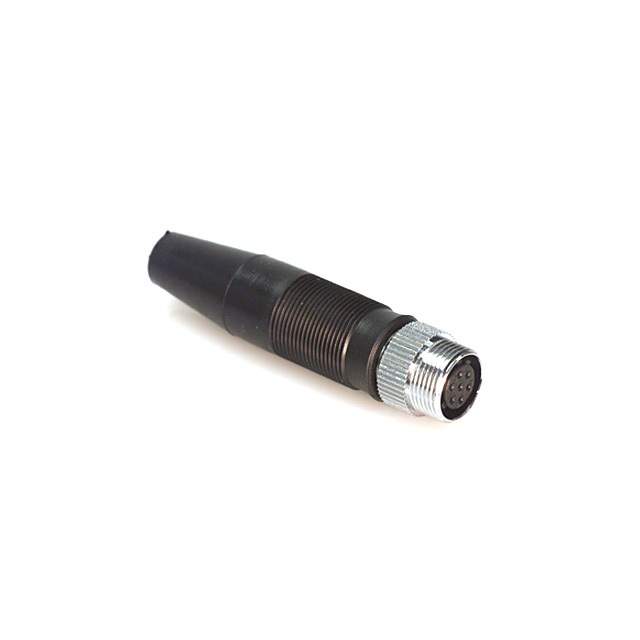

SR30-10JF-7S Real Image
Same model may have multiple batches, images only for reference.

SR30-10JF-7S

Part No SR30-10JF-7S
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Datasheet
SR30-10JF-7S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR30
Product Status Obsolete
Other Names *SR30-10JF-7S,HR508
Standard Package 20
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294217-SR30-10JF-7S
Ultra Librarian 3D Model Ultra Librarian SR30-10JF-7S CAD Model

Description

The SR30-10JF-7S is an obsolete 7-position circular connector, designed for use in various applications.

  • Connector Type: Female socket
  • Termination: Solder cup
  • Orientation: Keyed
  • Shell Size and Insert Material: N/A
  • Contact Material and Mating Finish: N/A
  • Voltage Rating: N/A
  • Current Rating: N/A
  • Shielding: Unshielded
  • Ingress Protection Rating: N/A
  • Package: N/A
  • Package Quantity: 20
