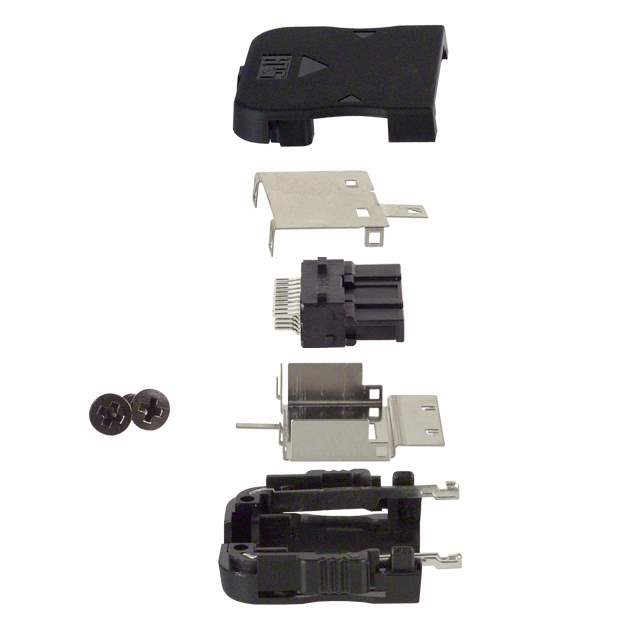

Same model may have multiple batches, images only for reference.

ST40X-18S-CV(30)

Name: ST40X-18S-CV(30)
Brand: Hirose Electric Co Ltd
SKU: 1293399
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ST40X-18S-CV(30)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Datasheet	ST40X-18S-CV(30) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tray
Connector Type	Plug
Contact Type	Non-Gender Specific
Number of Positions	18
Pitch	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Fastening Type	Lever Lock
Cable Termination	Solder
Wire Type	Discrete
Features	Shielded
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Color	Black
Base Product Number	ST40
Other Names	H125254,241-0012-1-30
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1293399-ST40X-18S-CV(30)
Ultra Librarian 3D Model	Ultra Librarian ST40X-18S-CV(30) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd ST40X-18S-CV(30) is a 1-row, 18-position rectangular connector that is designed to be plug-type and non-gender specific.

Positions: 18
Rows: 1
Pitch: 0.020" (0.50mm)
Contact Finish: Gold
Contact Finish Thickness: 8.00µin (0.203µm)
Shielded: Yes
Fastening Type: Lever Lock
Standard Package: 500
