Same model may have multiple batches, images only for reference.

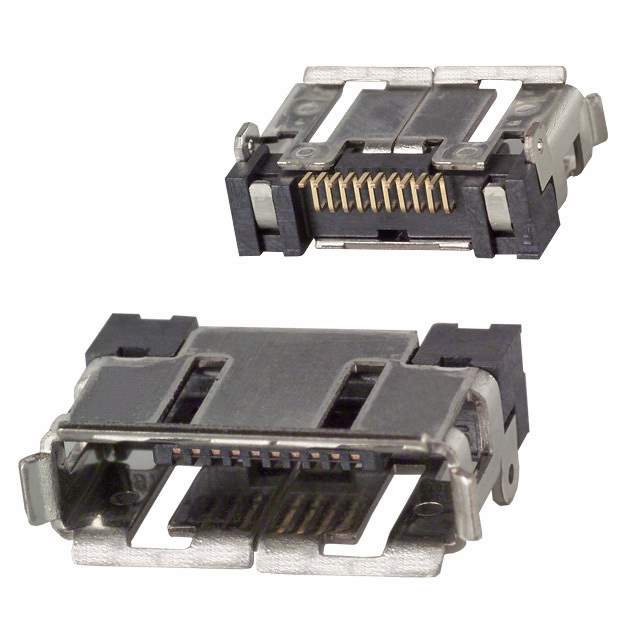

ST60-10P Real Image
Same model may have multiple batches, images only for reference.

ST60-10P

Part No ST60-10P
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description Interface Connectors for Miniature, Portable Terminal Devices | CONN RCPT 10P 0.02 GOLD EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel
Status Obsolete
Connector Type Receptacle
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.020" (0.50mm)
Number of Rows 1
Mounting Style Board Edge, Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Insulation Color Black
Insulation Height 0.118" (3.00mm)
Temperature Range - Operating -30°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide, Shielded
Current Rating (Amps) 0.5A
Voltage Rating 100VAC
Applications General Purpose, Telecommunications
Insulation Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Contact Finish Thickness - Post Flash
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1260341-ST60-10P
Manufacturer Homepage www.hirose-connectors.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ST60-10P CAD Model

Description

The Hirose Electric Co Ltd ST60-10P is a board edge, surface-mount right-angle connector with a shielded feature.

  • Number of Positions: 10
  • Pitch: 0.020" (0.50mm)
  • Row Spacing: -
  • Connector Type: Receptacle
  • Contact Type: Non-Gendered
  • Fastening Type: Latch Holder
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Flash
  • Voltage Rating: 100VAC
  • Temperature Range: -30°C to 80°C
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Board to Cable/Wire Style: -
  • Contact Shape: -
  • Applications: General Purpose and Telecommunications
  • Supply and Demand: Balance
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 0.5A
