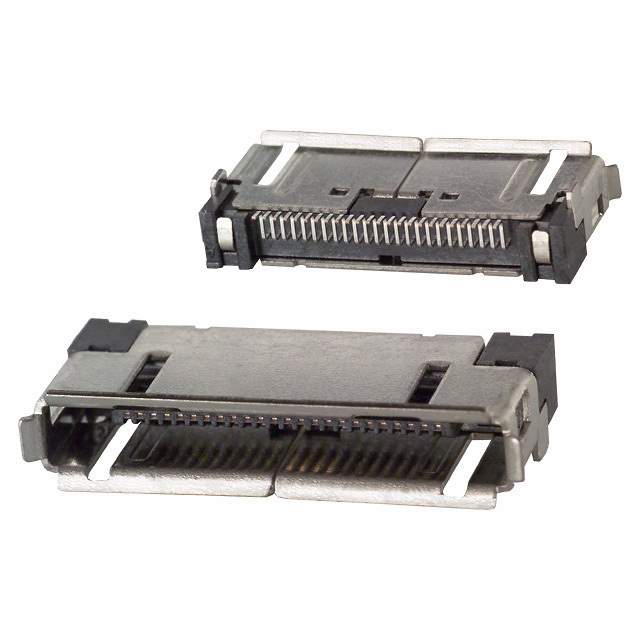

Same model may have multiple batches, images only for reference.

ST60-24P(30)

Name: ST60-24P(30)
Brand: Hirose Electric Co Ltd
SKU: 897836
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST60-24P(30)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 24P 0.02 GOLD EDGE MNT
Datasheet	ST60-24P(30) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	25 Weeks
Features	24 Position Receptacle Connector 0.020" (0.50mm) Board Edge, Surface Mount, Right Angle Gold
Manufacturer	Hirose Electric Co Ltd
Series	ST
Package	Reel - TR
Operating Temperature Range	-30°C ~ 80°C
Mounting	Board Edge, Surface Mount, Right Angle
Family Name	ST60
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	Q10244878, 241-0003-0-30, H125266CT, H125266TR, H125266DKR
Quantity per package	1500
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	897836-ST60-24P(30)
Ultra Librarian 3D Model	Ultra Librarian ST60-24P(30) CAD Model

Alternative Products

Description

The Hirose Electric ST series ST60 24-position receptacle connector is a surface mount, right-angle gold connector with a board edge of 0.020" (0.50mm).

Positions: 24
Mounting: Surface Mount, Right Angle
Board Edge: 0.020" (0.50mm)
Package: Reel of 1500
Operating Temperature: -30°C ~ 80°C
Category: Connectors
ECCN: EAR99
HTSUS Code: 8536.69.4040
Other Part Numbers: Q10244878, 241-0003-0-30, H125266CT, H125266TR, and H125266DKR
Popularity: High
Supply and Demand Status: Balanced
