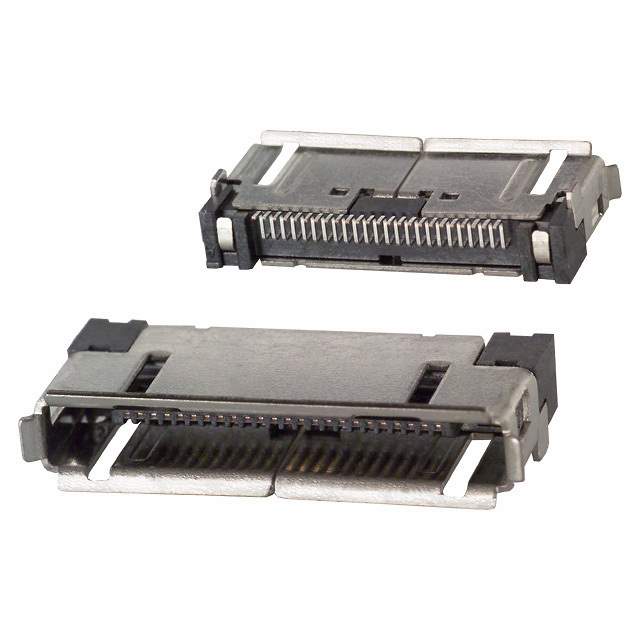

Same model may have multiple batches, images only for reference.

ST60-24P(51)

Name: ST60-24P(51)
Brand: Hirose Electric Co Ltd
SKU: 1293092
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ST60-24P(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.020" (0.50mm)
Number of Rows	1
Mounting Type	Board Edge, Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 80°C
Material Flammability Rating	UL94 V-0
Features	Board Guide, Shielded
Current Rating (Amps)	0.5A
Voltage Rating	100VAC
Applications	General Purpose, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Base Product Number	ST60
Other Names	241-0003-0-51
Standard Package	1,500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293092-ST60-24P(51)
Ultra Librarian 3D Model	Ultra Librarian ST60-24P(51) CAD Model

Alternative Products

Description

The ST series connector from Hirose Electric Co Ltd is a 24-position receptacle connector with a pitch of 0.020" (0.50mm).

Voltage Rating: 100VAC
Current Rating: 0.5A
Mounting Type: Board Edge, Surface Mount, Right Angle
Height Above Board: 0.118" (3.00mm)
Fastening Type: Latch Holder
Contact Material: Copper Alloy
Contact Finish: Gold
Material Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Standard Package: 1,500
Applications: General Purpose, Telecommunications
