Same model may have multiple batches, images only for reference.

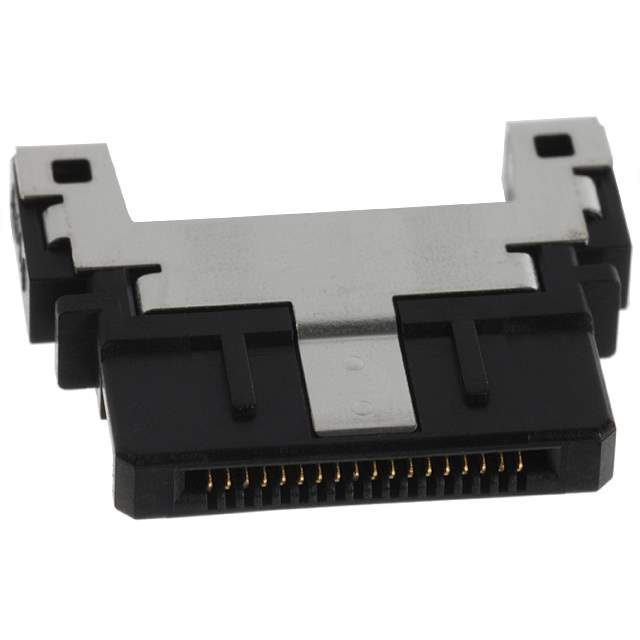

ST60X-18S Real Image
Same model may have multiple batches, images only for reference.

ST60X-18S

Part No ST60X-18S
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 18POS 0.5MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features Connector Header Surface Mount, Right Angle 18 position 0.020" (0.50mm)
Manufacturer Hirose Electric Co Ltd
Series ST
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -30°C ~ 80°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H11465TR, ST60X18S, H11465CT, *ST60X-18S, H11465DKR
Quantity per package 900
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897838-ST60X-18S
Ultra Librarian 3D Model Ultra Librarian ST60X-18S CAD Model

Description

The Hirose Electric Co Ltd ST60X-18S is a connector header that features a surface mount and right angle design. It offers 18 positions and a contact pitch of 0.020 inches (0.50mm).

  • Mounting: Surface Mount, Right Angle
  • Positions: 18
  • Contact Pitch: 0.020 inches (0.50mm)
  • Series: ST
  • Operating Temperature: -30°C to 80°C
  • Package: Reel - TR
  • Popularity: High
  • Category: Connectors
  • Supply and Demand: Balanced
  • Package Quantity: 900 pieces
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Numbers: H11465TR, ST60X18S, H11465CT, *ST60X-18S, and H11465DKR
