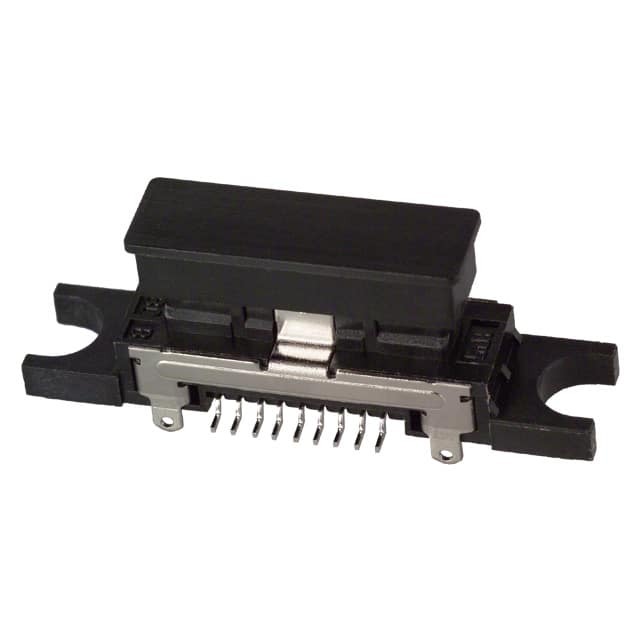

Part No ST80X-18S(50)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 18POS 1MM / Connector Header Surface Mount 18 position 0.039" (1.00mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series ST
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Cradle
Contact Type Non-Gendered
Pitch - Mating 0.039" (1.00mm)
Number of Positions 18
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.378" (9.60mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Mounting Flange, Shielded
Temperature Range - Operating -30°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 100V
Standard Package 400 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 897865-ST80X-18S(50)
Ultra Librarian 3D Model Ultra Librarian ST80X-18S(50) CAD Model

Description

The Hirose Electric Co Ltd ST80X-18S(50) is a male pin header connector from the ST series. It has 18 positions and comes in a tape & reel package with 400 pieces.

  • Series: ST
  • Positions: 18
  • Package: Tape & Reel
  • Quantity: 400 pieces
  • Features: Board Guide, Mounting Flange, Shielded
  • Type: Plug and Cradle
  • Contacts: Non-Gendered
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • Mounting: Surface Mount
  • Temperature Range: -30°C to 80°C
  • Application: Board to Cable/Wire
