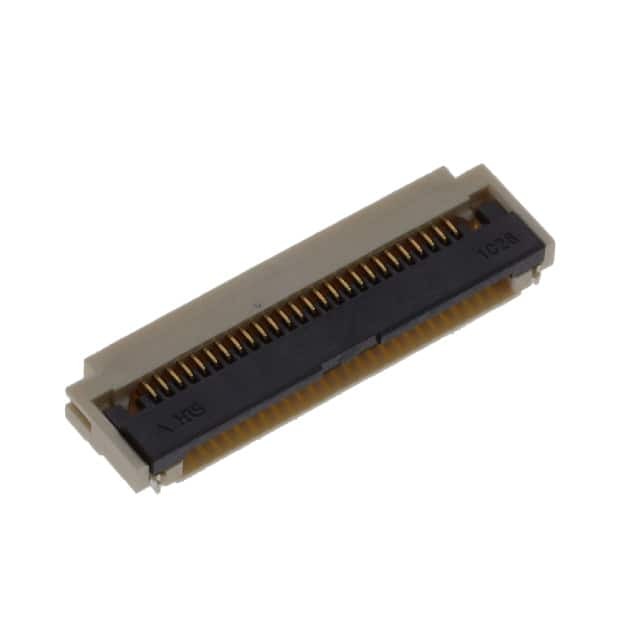

TF31-26S-0.5SH(800)
Same model may have multiple batches, images only for reference.

TF31-26S-0.5SH(800)

Part No TF31-26S-0.5SH(800)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 26POS 0.5MM R/A / 26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
TF31-26S-0.5SH(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series TF31
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 26
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number TF31
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849616-TF31-26S-0.5SH(800)
Ultra Librarian 3D Model Ultra Librarian TF31-26S-0.5SH(800) CAD Model

Description

The 849616-TF31-26S-0.5SH(800) is a FFC, FPC (Flat Flexible) connector assembly from Hirose Electric Co Ltd designed for use with TF31 series connectors.

  • Connector Series: TF31
  • Design: Zero Insertion Force (ZIF)
  • Current Rating: 0.5A
  • Pitch: 0.020" (0.50mm)
  • Voltage Rating: 50V
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Mounting: Surface Mount, Right-Angle
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
