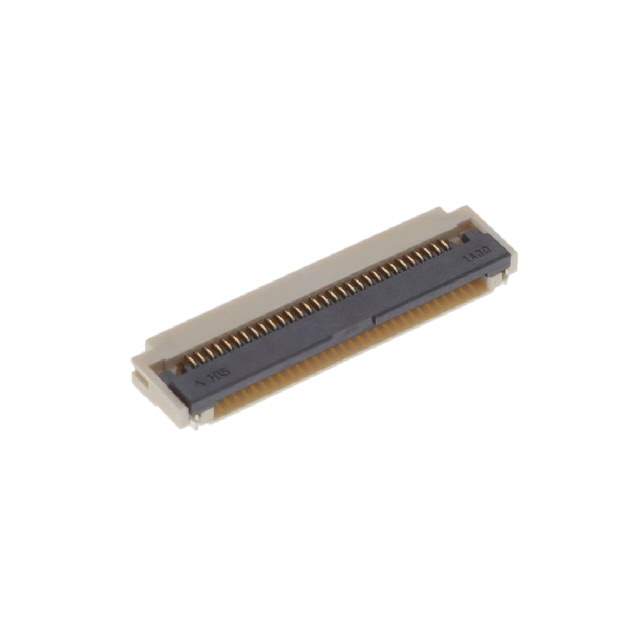

TF31-30S-0.5SH(800) Real Image
Same model may have multiple batches, images only for reference.

TF31-30S-0.5SH(800)

Part No TF31-30S-0.5SH(800)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC 30POS 0.50MM SMD
Datasheet
TF31-30S-0.5SH(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 26 Weeks
Features 30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series TF31
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name TF31
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 480-0179-6-00, 26-TF31-30S-0.5SH(800)CT, 26-TF31-30S-0.5SH(800)DKR, 26-TF31-30S-0.5SH(800)TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899499-TF31-30S-0.5SH(800)
Ultra Librarian 3D Model Ultra Librarian TF31-30S-0.5SH(800) CAD Model

Description

The Hirose Electric Co Ltd TF31-30S-0.5SH(800) is a 30-position FFC, FPC connector used in electronic devices.

  • Mounting: The device has a bottom 0.020" (0.50mm) surface mount and a right angle mounting style.
  • Operating Temperature Range: It has an operating temperature range of -40°C to 85°C
  • Package: and is available in a reel - TR packaging with a quantity per package of 3000.
  • ECCN: The device has an ECCN of EAR99
  • Estimated Production Lead Time: and an estimated production lead time of 26 weeks.
  • Supply and Demand Status: The supply and demand status of the device is currently balanced.
