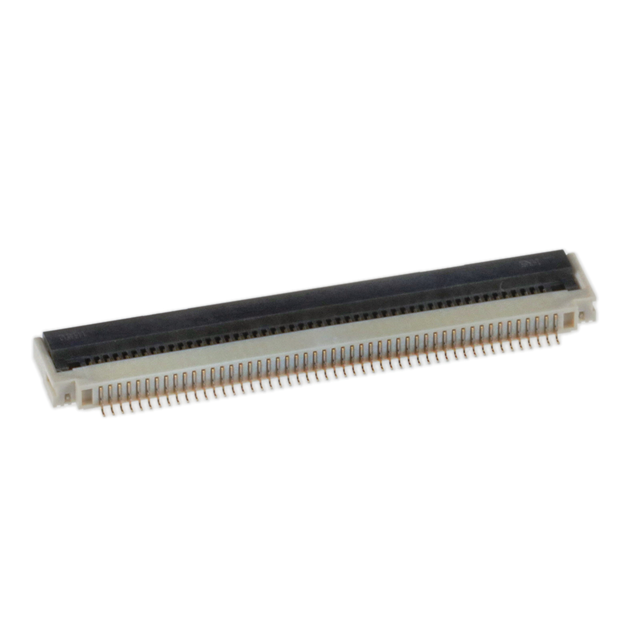

TF31-50S-0.5SH(800) Real Image
Same model may have multiple batches, images only for reference.

TF31-50S-0.5SH(800)

Part No TF31-50S-0.5SH(800)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC 50POS 0.50MM SMD / 50 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
TF31-50S-0.5SH(800) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number TF31
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 26-TF31-50S-0.5SH(800)DKR,480-0135-0-00,26-TF31-50S-0.5SH(800)TR,26-TF31-50S-0.5SH(800)CT
Standard Package 3,000
Win Source Part Number 1333304-TF31-50S-0.5SH(800)
Ultra Librarian 3D Model Ultra Librarian TF31-50S-0.5SH(800) CAD Model

Description

The TF31-50S-0.5SH(800) is a 50-position FFC/FPC connector assembly from Hirose Electric Co Ltd that is designed to be surface mounted in a right angle orientation.

  • Pitch: 0.50mm
  • Insertion Force: zero insertion force (ZIF)
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Operating Temperature: -40°C to 85°C
  • Flammability Rating: UL94 V-0
  • Housing Material: liquid crystal polymer (LCP)
  • Locking Feature: flip lock
  • Cable End Type: tabbed
  • RoHS Compliance: RoHS3 compliant
