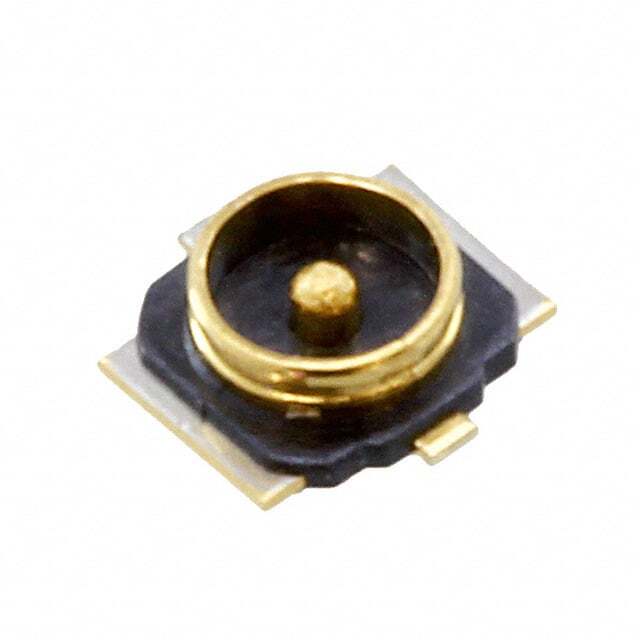

Same model may have multiple batches, images only for reference.
X.FL-R-SMT-1(80)
Same model may have multiple batches, images only for reference.

X.FL-R-SMT-1(80)

Part No X.FL-R-SMT-1(80)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN UMC RCPT STR 50 OHM SMD / U.FL (UMCC) Connector Receptacle, Male Pin 50Ohm Surface Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Hirose Electric Co Ltd
Series X.FL
Package Tape & Reel
Product Status Active
Connector Style U.FL (UMCC)
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Black
Center Contact Material Brass
Body Material Phosphor Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Mating Cycles 20
Base Product Number X.FL
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 845472-X.FL-R-SMT-1(80)
Ultra Librarian 3D Model Ultra Librarian X.FL-R-SMT-1(80) CAD Model

Description

The X.FL-R-SMT-1(80) is a coaxial connector assembly from Hirose Electric Co Ltd.

  • Connector Type: Receptacle, Male Pin
  • Series: X.FL
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Maximum Frequency: 6 GHz
  • Impedance: 50Ohm
  • Packaging: Tape & Reel (TR)
  • Standard Package: 10000 pcs
  • Housing Color: Black
  • Body Finish: Gold
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 90°C
  • Lifecycle Status: Active
  • ECCN: EAR99
  • Manufacturer: Hirose Electric Co Ltd
