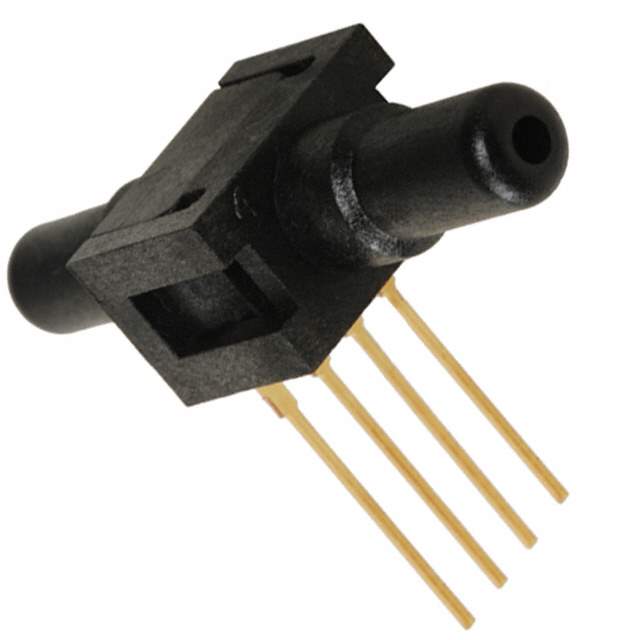

24PCAFA6D Real Image
Same model may have multiple batches, images only for reference.

24PCAFA6D

Part No 24PCAFA6D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSI DIFFERENTIAL GAUGE / Pressure Sensor ±1PSI (±6.89kPa) Differential Male - 0.2" (5mm) Tube, Dual 0 mV ~ 45 mV (10V) 4-SIP Module
Datasheet
24PCAFA6D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Tray
Applications Board Mount
Pressure Type Differential
Operating Pressure ±1PSI (±6.89kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 45 mV (10V)
Accuracy ±1%
Voltage - Supply 10V ~ 12V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Case / Package 4-SIP Module
Base Product Number 24PCAFA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 480-2496
Standard Package 25
Win Source Part Number 1336482-24PCAFA6D
Ultra Librarian 3D Model Ultra Librarian 24PCAFA6D CAD Model

Description

The 24PCAFA6D is a high-quality pressure sensor from Honeywell Sensing and Productivity Solutions.

  • Output Type: Wheatstone bridge.
  • Output: 0 mV to 45 mV (10V).
  • Accuracy: ±1%.
  • Pressure Type: Differential.
  • Operating Pressure: ±1PSI (±6.89kPa).
  • Port Size: Male 0.2-inch (5mm) tube, dual port.
  • Port Style: Barbless.
  • Maximum Pressure: ±20PSI (±137.9kPa).
  • Voltage Supply: 10V to 12V.
  • Applications: Board mount applications.
  • Case/Package: 4-SIP module.
  • RoHS Compliant: Yes.
  • ECCN: EAR99.
