Same model may have multiple batches, images only for reference.

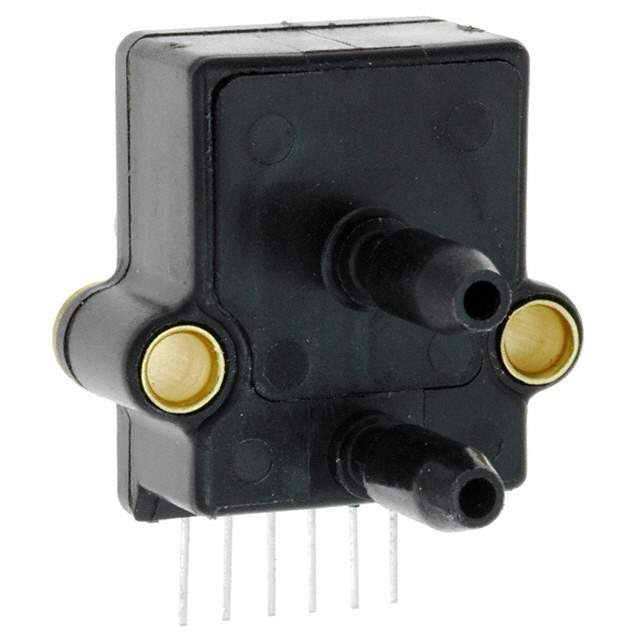

SCX150AN Real Image
Same model may have multiple batches, images only for reference.

SCX150AN

Part No SCX150AN
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 150PSIA / Pressure Sensor 150PSI (1034.21kPa) Absolute Male - 0.19" (4.8mm) Tube 0 mV ~ 90 mV (12V) 6-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCX
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 150PSI (1034.21kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 90 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.19" (4.8mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-SIP Module
Base Product Number SCX150
Other Names 287-1021,287-1021R
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234801-SCX150AN
Ultra Librarian 3D Model Ultra Librarian SCX150AN CAD Model

Description

The Honeywell SCX SCX150AN is a pressure sensor that belongs to the Sensors, Transducers category.

  • Termination Style: PC Pin
  • Temperature Compensation: Yes
  • Package: bulk
  • Standard Package: 25
  • Output Type: Wheatstone Bridge
  • Output: 0 mV ~ 90 mV (12V)
  • Accuracy: ±1%
  • Pressure Type: absolute
  • Operating Pressure: 150PSI (1034.21kPa)
  • Port Size: male - 0.19" (4.8mm) Tube
  • Port Style: barbed
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Voltage Supply: 20V
  • Package/Case: 6-SIP Module
  • Supplier Device Package: -
  • Operating Temperature: -40°C ~ 85°C
  • HTSUS: 9026.20.4000
  • Other Names: 287-1021, 287-1021R
  • Base Product Number: SCX150
