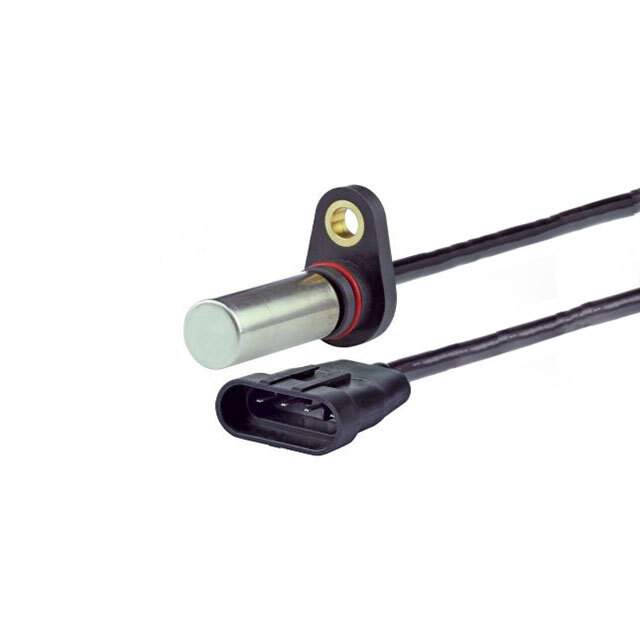

SNDH-T4P-G01 Real Image
Same model may have multiple batches, images only for reference.

SNDH-T4P-G01

Part No SNDH-T4P-G01
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL OPEN COLLECTOR CONN
Datasheet
SNDH-T4P-G01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNDH-T
Package Bulk
Type Hall Effect Switch
Output Type Open Collector
Actuator Material Magnet
Termination Style Connector
Frequency 15 kHz
Voltage - Supply 4.5V ~ 18V
Temperature Range - Operating -40°C ~ 150°C (TA)
Package / Case Cylinder with Mounting Flange
Base Product Number SNDH-T4
Other Names 480-6895
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.20.0000
Win Source Part Number 1235371-SNDH-T4P-G01
Ultra Librarian 3D Model Ultra Librarian SNDH-T4P-G01 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SNDH-T4P-G01 Hall Effect Switch is an electronic component designed for use in industrial magnetic sensors.

  • Technology: Hall Effect
  • Output Type: Open collector
  • Package: Cylinder with mounting flange
  • Suitable for: Use with magnets
  • Operating Temperature Range: -40°C to 150°C
  • Status: Obsolete
