Same model may have multiple batches, images only for reference.

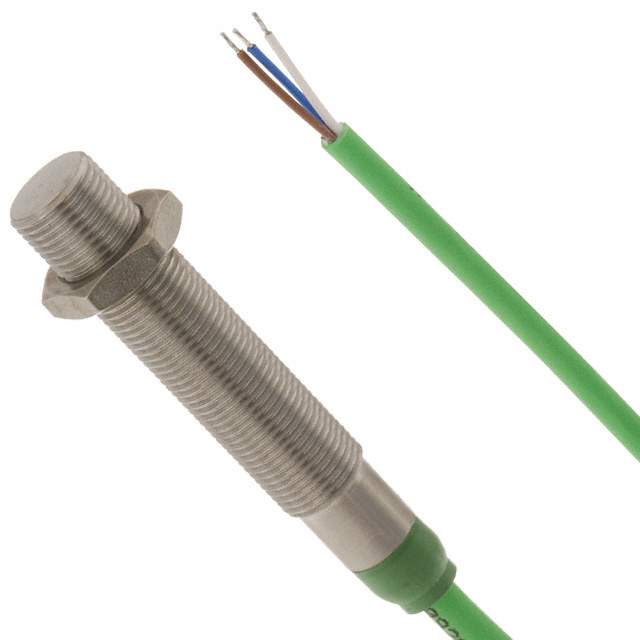

SNDJ-H3L-G01 Real Image
Same model may have multiple batches, images only for reference.

SNDJ-H3L-G01

Part No SNDJ-H3L-G01
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL DIGITAL W LEADS CONN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNDJ
Product Status Obsolete
Type Hall Effect Sensor
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Wire Leads with Connector
Frequency 15 kHz
Voltage - Supply 8V ~ 25V
Temperature Range - Operating -20°C ~ 100°C (TA)
Package / Case Barrel, Stainless Steel
Other Names 480-2811,SNDJH3LG01
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 1235370-SNDJ-H3L-G01
Ultra Librarian 3D Model Ultra Librarian SNDJ-H3L-G01 CAD Model

Description

The Honeywell SNDJ Hall Effect Sensor is a magnetic sensor designed for position, proximity, and speed sensing in industrial applications.

  • Termination Style: Wire leads with connector
  • Package: Barrel, stainless steel
  • Actuator Material: Ferrous metals and gear tooth
  • Output Type: Digital
  • Voltage Supply: 8V to 25V
  • Temperature Range: -20°C to 100°C
  • Series: SNDJ
  • Status: Obsolete
