Same model may have multiple batches, images only for reference.

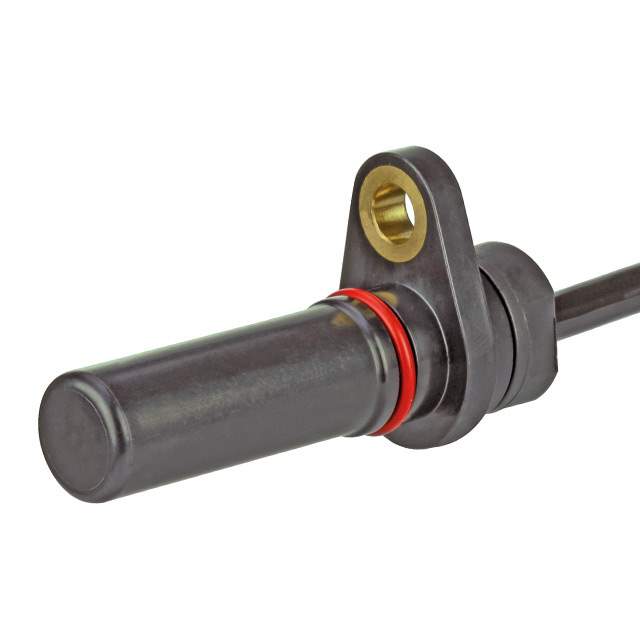

SNG-QPMB-000 Real Image
Same model may have multiple batches, images only for reference.

SNG-QPMB-000

Part No SNG-QPMB-000
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description QUADRATURE SPEED SENSOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNG-Q
Type Hall Effect Sensor
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Cable
Frequency 20 kHz
Voltage - Supply 4.5V ~ 26V
Temperature Range - Operating -40°C ~ 150°C
Package / Case Module
Base Product Number SNG-QPMB
Other Names 480-7036,2266-SNG-QPMB-000
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1235367-SNG-QPMB-000
Ultra Librarian 3D Model Ultra Librarian SNG-QPMB-000 CAD Model

Description

The Honeywell SNG-Q Hall Effect Sensor is a magnetic sensor designed for position, proximity, and speed sensing in industrial applications.

  • Termination Style: Cable
  • Package: Module
  • Actuator Material: Ferrous metals and gear tooth
  • Output Type: Digital
  • Voltage Supply: 4.5V to 26V
  • Temperature Range: -40°C to 150°C
  • Series: SNG-Q
