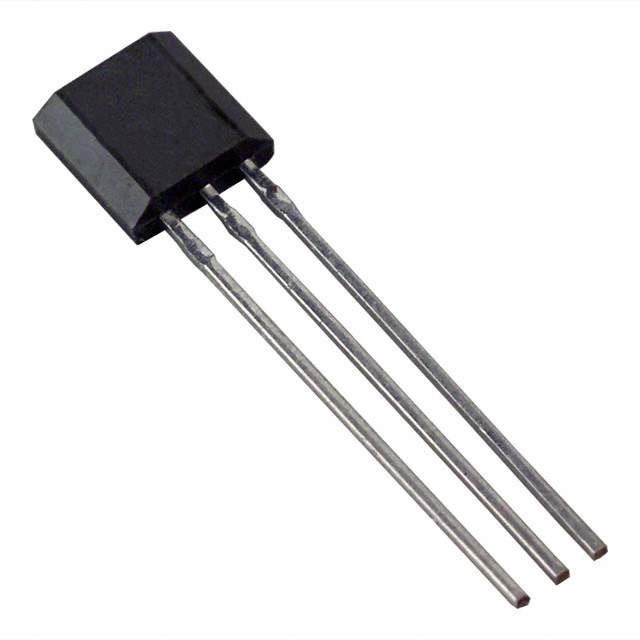

SS466A-L Real Image
Same model may have multiple batches, images only for reference.

SS466A-L

Part No SS466A-L
Manufacturer Honeywell
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH RADIAL / Digital Switch Latch Open Collector Hall Effect Radial Lead
Datasheet
SS466A-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Honeywell Sensing and Productivity Solutions
Series SS400
Package Bulk
Function Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 18mT Trip, -18mT Release
Test Condition 25°C
Voltage - Supply 3.8V ~ 30V
Current - Supply (Max) 10mA
Current - Output (Max) 20mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 150°C (TA)
Mounting Type Through Hole
Supplier Device Package Radial Lead
Package / Case 3-SIP
Base Product Number SS466
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235202-SS466A-L
Ultra Librarian 3D Model Ultra Librarian SS466A-L CAD Model

Description

The Honeywell SS466A-L magnetic sensor is a solid-state component designed for use in industrial applications.

  • Temperature Compensated: Yes
  • Technology: Hall effect
  • Output Type: Open collector
  • Function: Latch
  • Sensing Range: 18mT trip and -18mT release
  • Polarization: South Pole
  • Voltage Range: 3.8V to 30V
  • Maximum Current Supply: 10mA
  • Maximum Current Output: 20mA
  • Package: 3-SIP
  • Mounting: Through a hole
  • Operating Temperature Range: -40°C to 150°C (TA)
