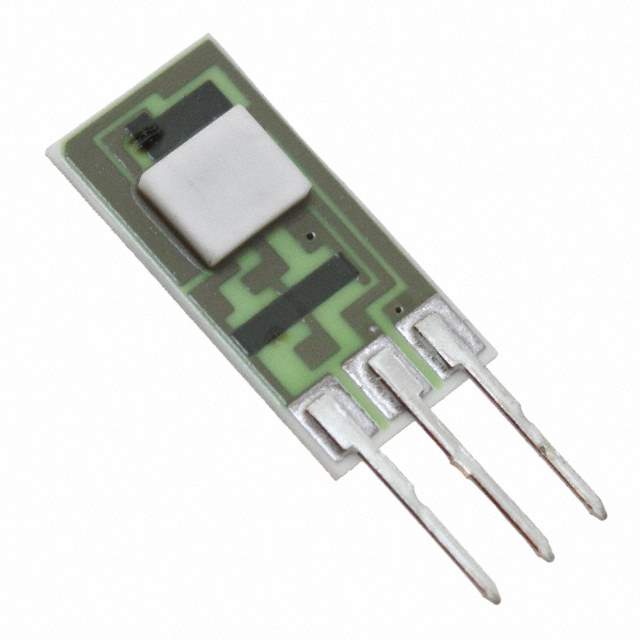

SS94A2 Real Image
Same model may have multiple batches, images only for reference.

SS94A2

Part No SS94A2
Manufacturer Honeywell
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR LINEAR ANALOG CSIP
Datasheet
SS94A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Status Active
Type Linear
Technology Hall Effect
Axis Single
Output Type Analog Voltage
Sensing Range ±50mT
Supply Voltage - Operating 6.6 V to 12.6 V
Current - Supply (Max) 30mA
Current - Output (Max) 1mA
Temperature Range - Operating -40°C to 125°C (TA)
Case / Package Ceramic SIP
Win Source Part Number 192823-SS94A2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Sensing & Instrumentation, Robotics, Test & Measurement, Security
Ultra Librarian 3D Model Ultra Librarian SS94A2 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SS94A2 linear Hall effect sensor is a single axis analog voltage output type with a sensing range of ±50mT.

  • Current - supply (Max): 30mA
  • Current - output (Max): 1mA
  • Case / package: Ceramic SIP
  • Operating temperature range: -40°C to 125°C (TA)
  • Supply voltage - operating: 6.6 V to 12.6 V
  • Applications: industrial, sensing & instrumentation, robotics, test & measurement, and security
  • Supply and demand status: Limited
