Same model may have multiple batches, images only for reference.

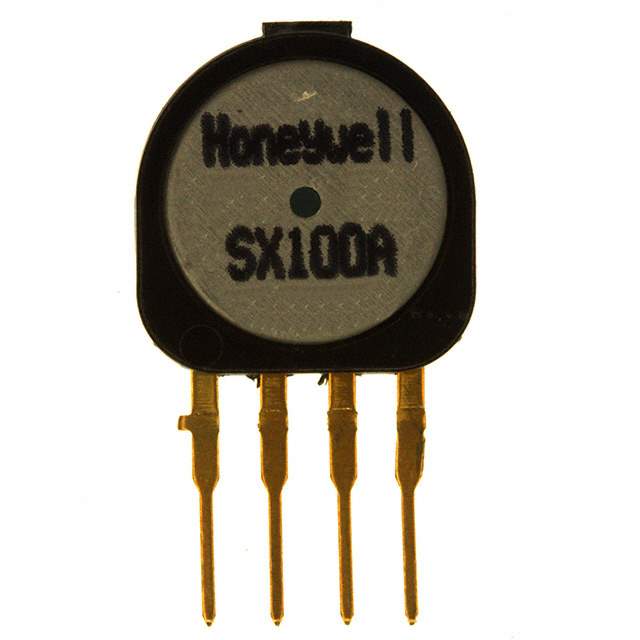

SX100A Real Image
Same model may have multiple batches, images only for reference.

SX100A

Part No SX100A
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 100PSIA BUTN PKG / Pressure Sensor 100PSI (689.48kPa) Absolute 0 mV ~ 150 mV (5V) 4-SIP Module
Datasheet
SX100A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Style No Port
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package Button
Other Names 287-1070R,287-1070
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234845-SX100A
Ultra Librarian 3D Model Ultra Librarian SX100A CAD Model

Description

The 1234845-SX100A is a pressure sensor manufactured by Honeywell Sensing and Productivity Solutions.

  • Output Type: Wheatstone Bridge
  • Output: 0mV ~ 150mV (5V)
  • Accuracy: ±0.5%
  • Pressure Type: absolute
  • Operating Pressure: 100PSI (689.48kPa)
  • Maximum Pressure: 150PSI (1034.21kPa)
  • Voltage Supply: 12V
  • Temperature Range: -40°C ~ 85°C
  • Package/Case: 4-SIP Module
  • Supplier Device Package: button
