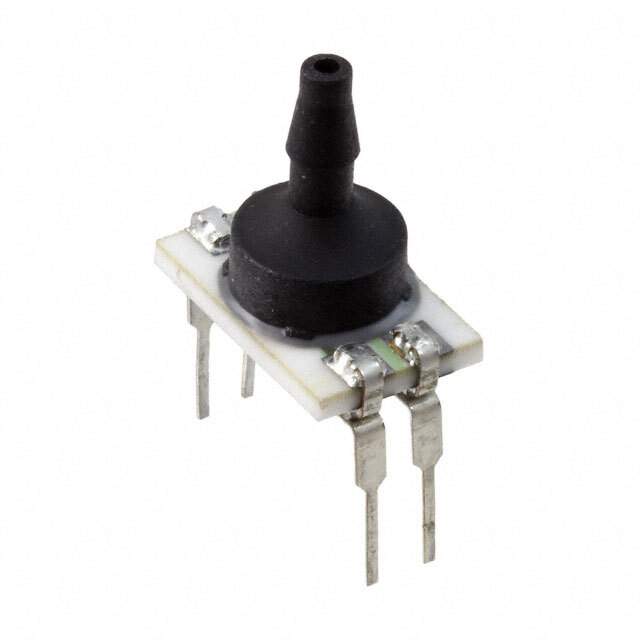

TBPDANN060PGUCV

Part No TBPDANN060PGUCV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BASIC MODEL PRESSURE SENSOR / Basic Board Mount Pressure Sensors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series TBP
Pressure Type Vented Gauge
Operating Pressure 60 PSI (413.69 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 30 mV (5V)
Accuracy ±0.15%
Operating Supply Voltage 1.5 V ~ 12 V
Port Size Male - 0.08" (2.54mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 145 PSI (999.74 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 4-DIP (0.453", 11.50mm), Top Port
Manufacturer Package 4-DIP
Win Source Part Number 796370-TBPDANN060PGUCV
Popularity Medium
Supply and Demand Status Limited
Family Name TBPDANN060PGUCV
Country of Origin China, Mexico, United States of America
Ultra Librarian 3D Model Ultra Librarian TBPDANN060PGUCV CAD Model

Description

The Honeywell Sensing and Productivity Solutions TBPDANN060PGUCV is a temperature compensated pressure sensor from Honeywell Sensing and Productivity Solutions.

  • Package: Top port
  • Output Type: Wheatstone bridge
  • Operating Supply Voltage: 1.5V to 12V
  • Output: 0mV to 30mV (5V)
  • Accuracy: ±0.15%
  • Pressure Type: Vented gauge
  • Operating Pressure: 60PSI
  • Maximum Pressure: 145PSI
  • Tube Port Size: Male 0.08" (2.54mm)
  • Port Style: Barbed
  • Operating Temperature: -40°C to 125°C
