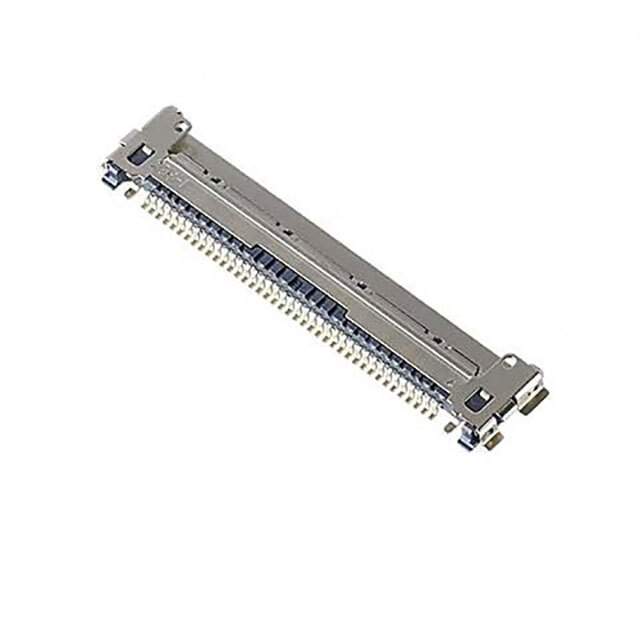

Part No 20525-040E-02
Manufacturer I-Pex
Catalog FFC, FPC (FlatFlexible) Connectors
Description CABLINE-CA RECEPTACLE 40P / 40 Position FPC Connector Contacts, Top and Bottom 0.016" (0.40mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer I-Pex
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 40
Pitch 0.016" (0.40mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Features EMI Shielded, Solder Retention
Voltage Rating 100V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish Thickness 4.00µin (0.10µm)
Housing Color Black
Mating Cycles 30
Base Product Number 20525
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 3508-20525-040E-02TR,3508-20525-040E-02DKR,3508-20525-040E-02CT
Standard Package 5,000
Win Source Part Number 1333351-20525-040E-02
Ultra Librarian 3D Model Ultra Librarian 20525-040E-02 CAD Model

Description

The I-Pex 1333351-20525-040E-02 is a 40-position FFC, FPC (Flat Flexible) Connector Assembly that comes in a reel packaging of 5,000 units.

  • Manufacturer: I-Pex
  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Packaging: Reel
  • Quantity per Reel: 5,000
  • Shielding: EMI Shielded
  • Retention: Solder Retention
  • Connector/Contact Type: Top and Bottom
  • Cable End Type: Straight
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Actuator Color: Not Specified
  • Voltage Rating: 100V
  • Current Rating: Not Specified
  • Operating Temperature Range: -40°C to 85°C
  • Mating Cycle: 30
