Same model may have multiple batches, images only for reference.

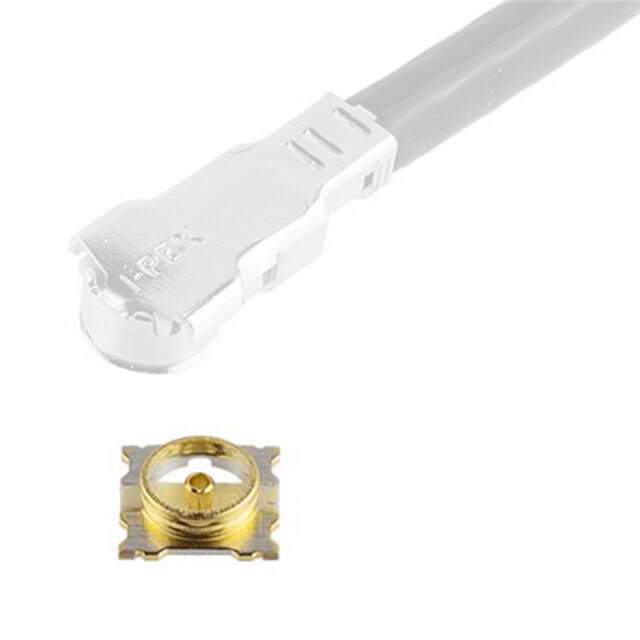

20981-001E-02 Real Image
Same model may have multiple batches, images only for reference.

20981-001E-02

Part No 20981-001E-02
Manufacturer I-Pex
Catalog Coaxial Connectors (RF) - Assemblies
Description MHF 7S RECEPTACLE / IPEX MHF7S Connector Receptacle, Female Socket 50Ohm Free Hanging (In-Line), Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer I-Pex
Packaging Reel - TR
Connector Style IPEX MHF7S
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Free Hanging (In-Line), Right Angle
Cable Group 1.13mm Coaxial Cable
Fastening Type Snap-On
Frequency - Max 15 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Corson Alloy
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Voltage Rating 60 V
Mating Cycles 30
Base Product Number 20981
RoHS Status ROHS3 Compliant
MSL Level Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 3508-20981-001E-02CT,3508-20981-001E-02DKR,3508-20981-001E-02TR
Standard Package 10,000
Win Source Part Number 1331968-20981-001E-02
Ultra Librarian 3D Model Ultra Librarian 20981-001E-02 CAD Model

Description

The I-Pex 1331968-20981-001E-02 is a coaxial connector (RF) assembly that comes in a reel packaging of 10,000 units.

  • Connector Type: Receptacle, female socket
  • Fastening Type: Snap-on
  • Contact Termination: Solder
  • Connector Style: IPEX MHF7S
  • Voltage Rating: 60V
  • Maximum Frequency: 15 GHz
  • Number of Ports: 1
  • Impedance: 50Ohm
  • Mounting Type: Free hanging (in-line), right angle
  • Cable Group: 1.13mm coaxial cable
  • Body Material: Not specified
  • Body Finish: Not specified
  • Center Contact Material: Corson alloy
  • Center Contact Plating: Gold
  • Dielectric Material: Liquid crystal polymer (LCP)
  • Insertion Loss: Not specified
  • Shield Termination: Not specified
