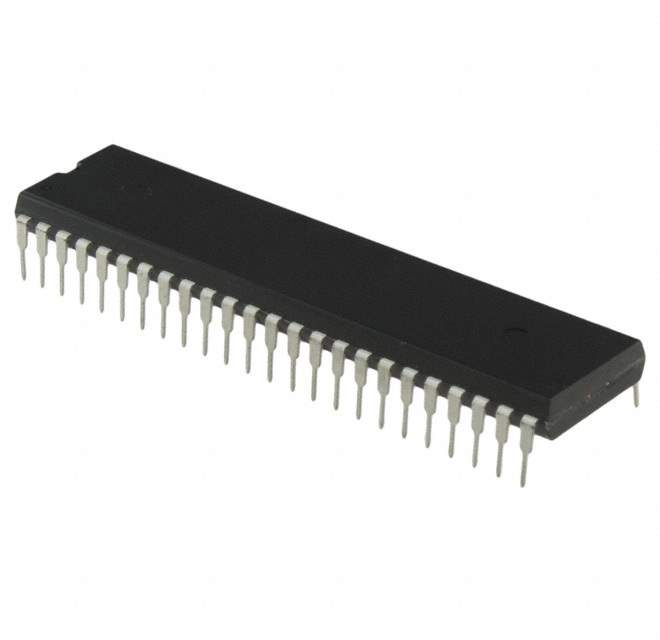

The IDT7142SA35P is a high-speed, static RAM (SRAM) device manufactured by Integrated Device Technology (IDT). This memory chip is designed for applications requiring fast access times and reliable data storage. It is organized as 4K x 4, providing a total storage capacity of 16 Kbits.

Applications


• High-speed cache memory

• Buffer memory in data acquisition systems

• Real-time data processing

• Digital signal processing (DSP) systems

• Networking equipment such as routers and switches

Features


• High-speed access time: 35ns access time ensures quick data retrieval.

• Low power consumption: Static operation minimizes power usage.

• Fully static operation: No clock or refresh required, simplifying system design.

• TTL compatible inputs and outputs: Ensures easy interfacing with TTL logic.

• Available in various package options: Provides flexibility for different board layouts.

• 4K x 4 organization: Optimizes memory usage in various applications.

Benefits


• Improved system performance: Fast access times enhance overall system speed and responsiveness.

• Reduced power consumption: Minimizes energy requirements, making it suitable for portable devices.

• Simplified design: Static operation reduces complexity and design effort.

• Enhanced reliability: Robust design ensures stable and dependable operation.

• Easy integration: TTL compatibility allows seamless interfacing with existing systems.

Additional Details

The IDT7142SA35P operates over a wide temperature range, typically from 0°C to 70°C, making it suitable for various environments. It uses standard TTL voltage levels for input and output signals. The device is available in a 24-pin package. The supply voltage is typically 5V. Its fast access time and low power consumption make it an ideal choice for demanding memory applications. The detailed datasheet provides extensive information regarding timing characteristics, electrical specifications, and package dimensions. IDT is a well-known manufacturer with a reputation for producing high-quality memory solutions.
