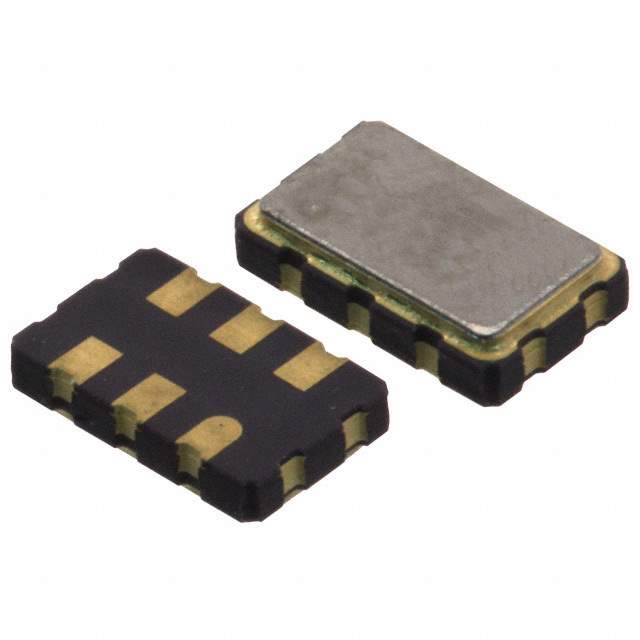

XLH536020.000000I Real Image
Same model may have multiple batches, images only for reference.

XLH536020.000000I

Part No XLH536020.000000I
Manufacturer IDT, Integrated Device Technology Inc
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ HCMOS SMD / 20 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
XLH536020.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer IDT, Integrated Device Technology Inc
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 32mA
Mounting Surface Mount
Case / Package 6-SMD, No Lead
Size / Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number XLH536
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 631-1152-1,631-1152-2,767-20-9,FXOHC536R20,631-1152-6,FXO-HC536R-20,FXO-HC536R-20.000,FXO-HC536R-20-ND
Standard Package 1,000
Win Source Part Number 1329068-XLH536020.000000I
Ultra Librarian 3D Model Ultra Librarian XLH536020.000000I CAD Model

Description

The IDT XLH536020.000000I is a high-performance oscillator with a frequency of 20 MHz.

  • Package: 6-SMD, no lead
  • Operating Temperature: -40°C to 85°C
  • Frequency Stability: ±25ppm
  • Current Supply: 32mA
  • Output: HCMOS
  • Enable/Disable: Yes
  • Size: 0.203" L x 0.132" W (5.15mm x 3.35mm)
  • Height: 0.055" (1.40mm)
  • RoHS3: Compliant
  • REACH: Unaffected
