Same model may have multiple batches, images only for reference.

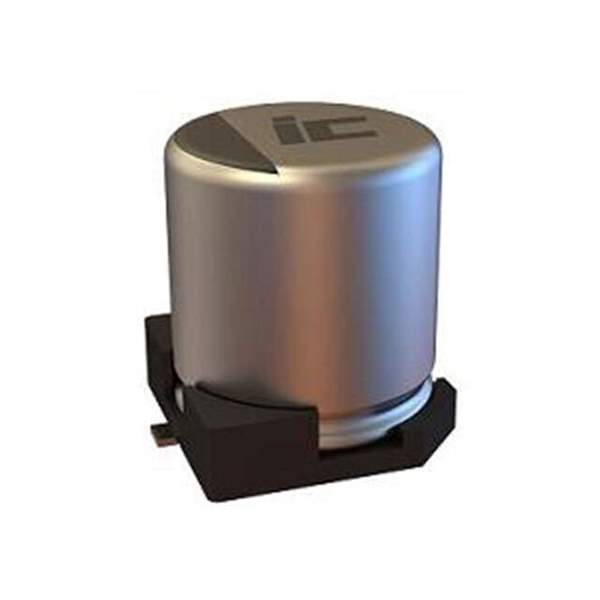

108SML6R3M Real Image
Same model may have multiple batches, images only for reference.

108SML6R3M

Part No 108SML6R3M
Manufacturer Illinois Capacitor
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 6.3V SMD
Datasheet
108SML6R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Illinois Capacitor
Series SML
Packaging Reel package
Capacitance 1000μF
Tolerance ±20%
Voltage Rating 6.3V
ESR (Equivalent Series Resistance) 464 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 370mA @ 120Hz
Ripple Current - High Frequency 555mA @ 100kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.417" (10.60mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 760147-108SML6R3M
Popularity Medium
Supply and Demand Status Limited
Family Name SML
Introduction Date August 09, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 108SML6R3M CAD Model

Description

The electronic component with Id 698532 is a capacitor manufactured by Illinois Capacitor.

  • Win Source Part Number: 760147-108SML6R3M
  • Series: SML
  • Packaging: Reel
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package Type: Radial, Can - SMD
  • Voltage Rating: 6.3V
  • Capacitance: 1000μF
  • Tolerance: ±20%
  • Impedance: Not Specified
  • ESR: 464 mOhm @ 120Hz
  • Lifetime @ Temp: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Ripple Current - Low Frequency: 370mA @ 120Hz
  • Ripple Current - High Frequency: 555mA @ 100kHz
  • Height: 0.417" (10.60mm)
  • Alternative Parts (Cross-Reference): MALSECA00AF410BARK, NACEW102M6.3V8X10.5TR13, NACEW102M6.3V8X10.5TR13F
  • Introduction Date: August 09, 2010
  • ECCN: EAR99
  • Country of Origin: China
  • Estimated EOL Date: 2028
  • Supply and Demand Status: Limited
