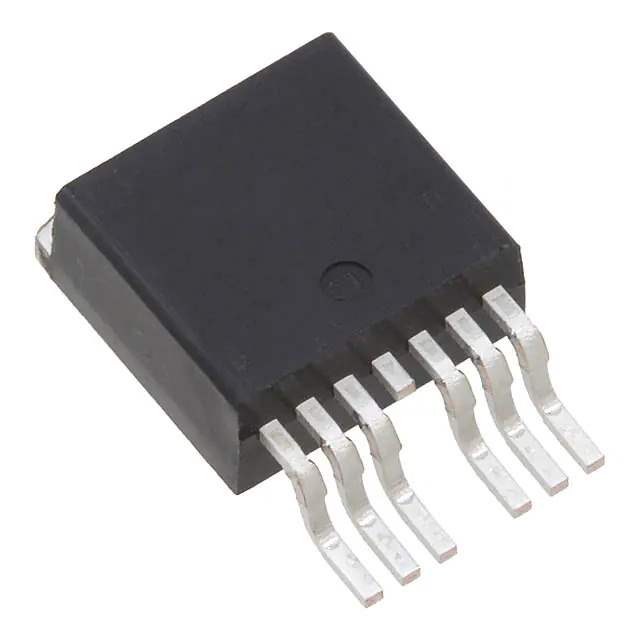

Same model may have multiple batches, images only for reference.

AUIRFS3004-7TRL

Name: AUIRFS3004-7TRL
Brand: Infineon Technologies
SKU: 875175
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	AUIRFS3004-7TRL
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 240A D2PAK / N-Channel 40 V 240A (Tc) 380W (Tc) Surface Mount D2PAK (7-Lead)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	HEXFET®
Package	Tape & Reel
Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.25mOhm @ 195A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	240 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9130 pF @ 25 V
Power Dissipation (Max)	380W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK (7-Lead)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
Base Product Number	AUIRFS3004
Standard Package	800 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	875175-AUIRFS3004-7TRL
Ultra Librarian 3D Model	Ultra Librarian AUIRFS3004-7TRL CAD Model

Alternative Products

Description

The 875175-AUIRFS3004-7TRL is a single MOSFET transistor designed by Infineon Technologies.

Category: FETs, MOSFETs
Series: HEXFET
Channel Type: N-Channel
Drain-to-Source Voltage (Vdss): 40V
Continuous Drain Current (Id) @ 25°C: 240A
Rds On (Max) @ 195A and 10V: 1.25mOhm
Gate Voltage (Vgs): ±20V
Mounting: Surface Mountable
Package: TO-263-7, D²Pak
Standard Package: 800 pieces
Win Source Part Number: 875175-AUIRFS3004-7TRL
