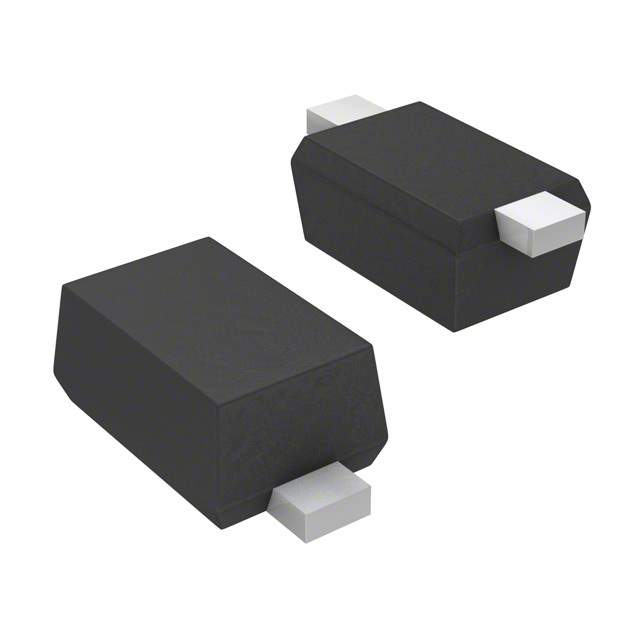

The BAR 63-02V E6327 is a silicon PIN diode from Infineon Technologies, designed for RF switching and attenuator applications. This diode offers a low forward resistance and a low capacitance, making it suitable for high-frequency circuits where signal loss needs to be minimized.

Applications

• RF switches
• Attenuators
• Voltage variable attenuators (VVAs)
• Phase shifters
• Tunable filters
• Wireless communication systems
• Radar systems

Features

• Low forward resistance
• Low capacitance
• High reverse voltage
• Fast switching speed
• Small package size
• RoHS compliant

Benefits

• Improved signal integrity due to low insertion loss
• Reduced power consumption in switching applications
• Enhanced system performance in high-frequency circuits
• Compact design due to small package size
• Meets environmental regulations

Technical Specifications

The BAR 63-02V E6327 features a low forward resistance, typically around 1.2 Ohms at 10mA. Its capacitance is very low, typically around 0.25 pF at 0V. The reverse voltage is typically 30V. The diode is designed for surface mount technology (SMT) and comes in a small SOT-23 package. Its fast switching speed enables high-speed applications. Infineon's E6327 suffix indicates specific packing and reel options for automated assembly processes.

This PIN diode is particularly useful in applications where precise control over RF signals is required. Its characteristics allow for efficient switching and attenuation, making it a reliable component in various communication and radar systems.
