Same model may have multiple batches, images only for reference.

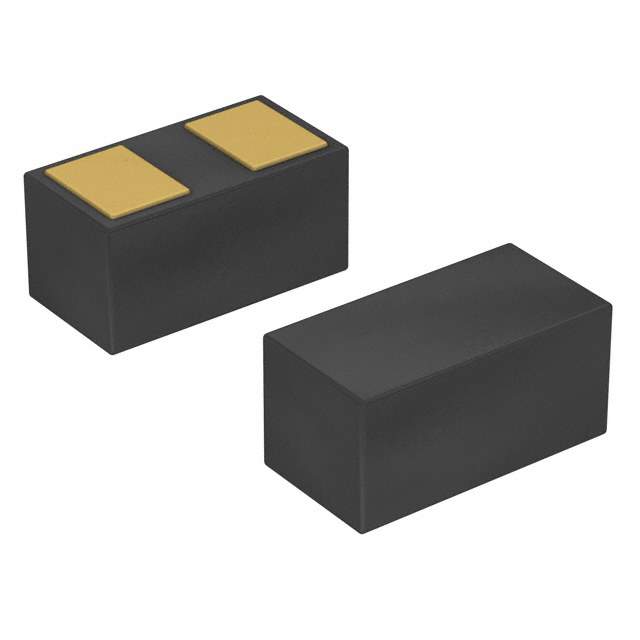

BAT2402ELSE6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BAT2402ELSE6327XTSA1

Part No BAT2402ELSE6327XTSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 4V 110MA SC79-2
Datasheet
BAT2402ELSE6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 25 Weeks
Features Diode Schottky 4 V 110mA (DC) Surface Mount PG-TSSLP-2-1
Manufacturer Infineon Technologies
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 0201 (0603 Metric)
Case / Package PG-TSSLP-2-1
Family Name BAT2402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Quantity per package 15000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863476-BAT2402ELSE6327XTSA1
Ultra Librarian 3D Model Ultra Librarian BAT2402ELSE6327XTSA1 CAD Model

Description

The Infineon Technologies BAT2402ELSE6327XTSA1 is a Diode Schottky with a 4 V 110mA (DC) Surface Mount PG-TSSLP-2-1 feature.

  • Package: 0201 (0603 Metric)
  • Package Type: Reel - TR
  • Family: BAT2402
  • Category: Discrete Semiconductor Products
  • Popularity: Medium (46 pct)
  • Supply and Demand Status: Limited
  • Quantity per Package: 15000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 25 weeks
  • REACH Status: REACH unaffected
  • HTSUS: 8541.10.0070
