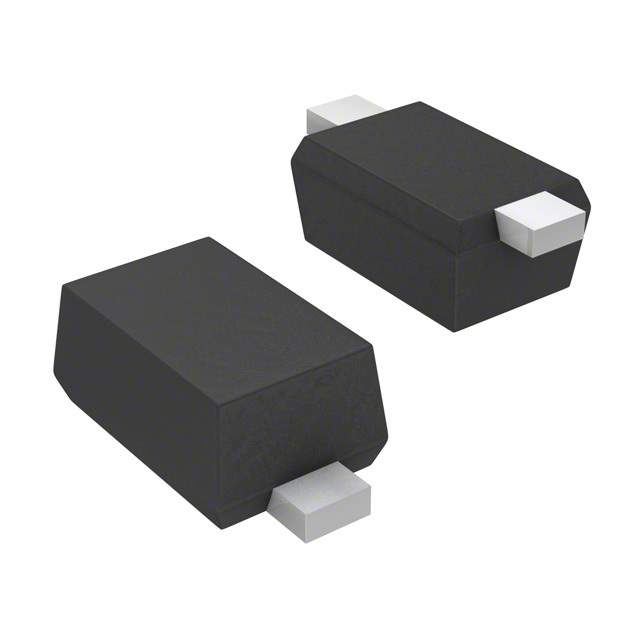

The BAT54-02VH6327 is a Schottky Barrier Diode manufactured by Infineon Technologies, designed for high-speed switching and clamping applications. Its low forward voltage drop and fast recovery time make it suitable for improving efficiency in various electronic circuits. The device is a single diode configuration and comes in a small surface-mount package, ideal for compact designs.

Applications

• High-Speed Switching: Employed in circuits requiring fast switching speeds, such as clamping and protection circuits.
• Reverse Polarity Protection: Provides protection against reverse polarity connections in sensitive electronic circuits.
• DC-DC Converters: Integrated into DC-DC converters to improve efficiency and reduce power losses.
• Clamping Diodes: Used to clamp voltage signals to a specific level, preventing damage to sensitive components.
• Sample-and-Hold Circuits: Implemented in sample-and-hold circuits for accurate signal capture.

Features

• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• Fast Switching Speed: Enables high-frequency operation and reduces switching losses.
• Small Package Size: Offers a compact solution for space-constrained applications.
• High Surge Current Capability: Withstands high current surges without damage.
• RoHS Compliant: Complies with environmental regulations regarding hazardous substances.

Benefits

• Improved Efficiency: Reduces power losses in switching circuits.
• Enhanced System Performance: Faster switching speeds improve performance in high-frequency applications.
• Compact Design: Small package size enables use in space-constrained applications.
• Increased Reliability: High surge current capability ensures reliable operation in harsh environments.
• Environmentally Friendly: RoHS compliance ensures the device is environmentally safe.

Additional Details

The BAT54-02VH6327 is typically supplied in a small SMD package such as SOT-23. Its key specifications include a maximum repetitive peak reverse voltage of 30V and a maximum average forward rectified current of 200mA. The forward voltage drop is typically in the range of 0.35V to 0.45V at rated current. The diode's operating temperature range is typically -55°C to +125°C. It is important to consult the datasheet for precise operating conditions and thermal management recommendations.
