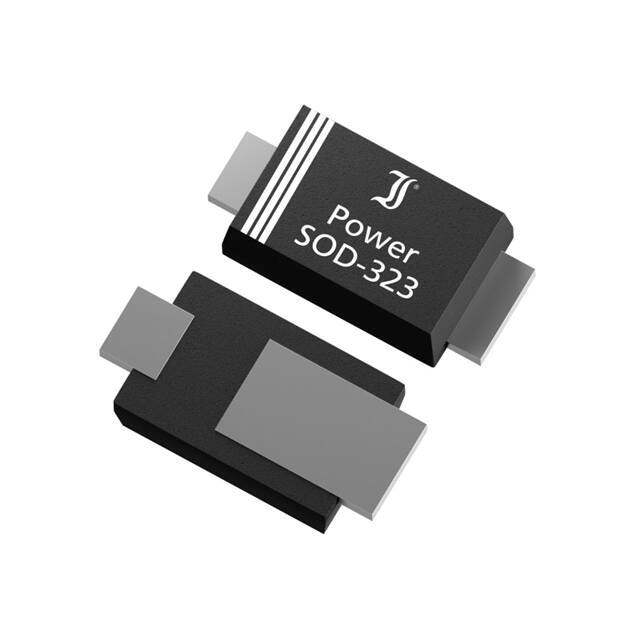

SDB160WS Real Image
Same model may have multiple batches, images only for reference.

SDB160WS

Part No SDB160WS
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 1A SOD323 / Diode 60 V 1A Surface Mount SOD-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 640 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 60 V
Capacitance @ Vr, F 38pF @ 10V, 1MHz
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 933216-SDB160WS
Ultra Librarian 3D Model Ultra Librarian SDB160WS CAD Model

Description

The 933216-SDB160WS is a fast recovery Schottky diode with a voltage rating of 60V. It has a maximum forward voltage of 640mV @ a current of 1A.

  • Voltage Rating: 60V
  • Forward Voltage: 640mV @ 1A
  • Current Rating: 1A
  • Reverse Leakage Current: 100µA @ 60V
  • Capacitance: 38pF @ 10V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Package Type: SC-90 (SOD-323F)
  • Packaging: Tape and Reel
  • Quantity per Reel: 3,000 pcs
  • Status: Active
  • Manufacturer: DIOTEC Electronics Corporation
