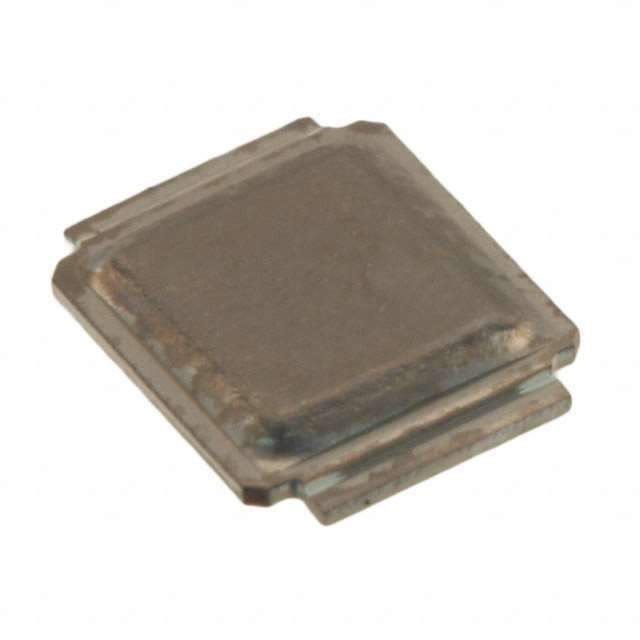

The Infineon Technologies 448103 is a MOSFET transistor that operates in N-Channel polarity.

• Manufacturer: Infineon Technologies
• Polarity: N-Channel
• Power Dissipation (Max): 2.8W (Ta) or 57W (Tc)
• Drive Voltage: 4.5V to 10V
• Packaging: Reel-tr
• Mounting: SMD (SMT)
• Operating Temperature: -40°C to 150°C (TJ)
• Drain-Source Breakdown Voltage: 25V
• Continuous Drain Current @ 25°C: 36A (Ta) or 163A (Tc)
• Gate-Source Threshold Voltage: 2V @ 250μA
• Gate Charge (Max): 62nC @ 10V
• Input Capacitance (Max): 4400pF @ 12V
• Gate-Source Voltage (Max): ±20V
• Rds On (Max) @ Id, Vgs: 1.3 mOhm @ 30A, 10V
