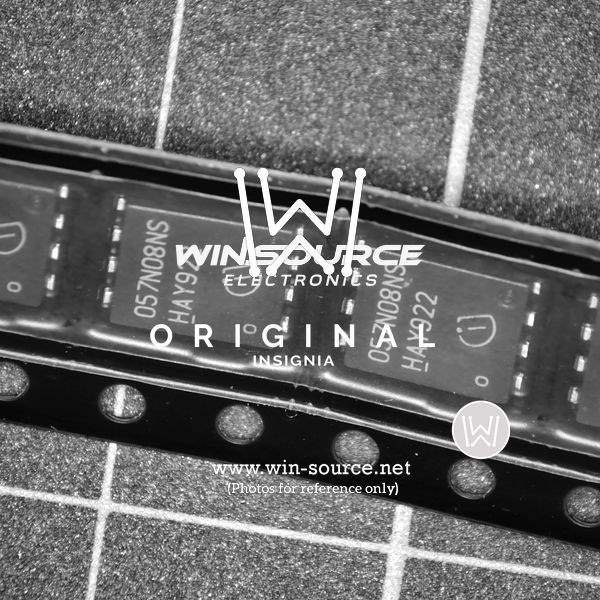

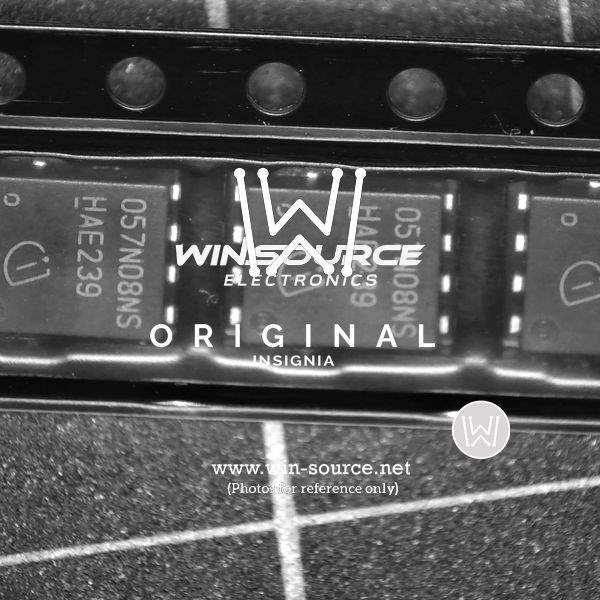

BSC057N08NS3GATMA1 Real Image BSC057N08NS3GATMA1 Real Image1 BSC057N08NS3GATMA1 Real Image2
Same model may have multiple batches, images only for reference.
BSC057N08NS3GATMA1 Real Image BSC057N08NS3GATMA1 Real Image1 BSC057N08NS3GATMA1 Real Image2
BSC057N08NS3GATMA1 Real Image BSC057N08NS3GATMA1 Real Image1 BSC057N08NS3GATMA1 Real Image2
Same model may have multiple batches, images only for reference.

BSC057N08NS3GATMA1

Part No BSC057N08NS3GATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 80V 100A TDSON-8
Datasheet
BSC057N08NS3GATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 80V
Continuous Drain Current at 25°C 16A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 3.5V @ 73μA
Max Gate Charge 56nC @ 10V
Max Input Capacitance 3900pF @ 40V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 114W (Tc)
Maximum Rds On at Id,Vgs 5.7 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 103115-BSC057N08NS3GATMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSC057N08NS3GATMA1 CAD Model

Description

BSC057N08NS3GATMA1 Description

The BSC057N08NS3GATMA1 is engineered to handle higher power requirements with ease, providing excellent thermal performance and rugged durability, making it a superior choice for high-demand applications.

  • Features and Benefits:
  • High power handling capability
  • Superior thermal performance
  • Durable construction for harsh environments
  • Suitable for higher voltage applications
  • Applications:
  • Power amplifiers
  • Energy-efficient appliances
  • Renewable energy converters
  • Heavy-duty motor controls
  • Electric vehicle systems

This component is perfect for applications where high efficiency and power management are critical.
