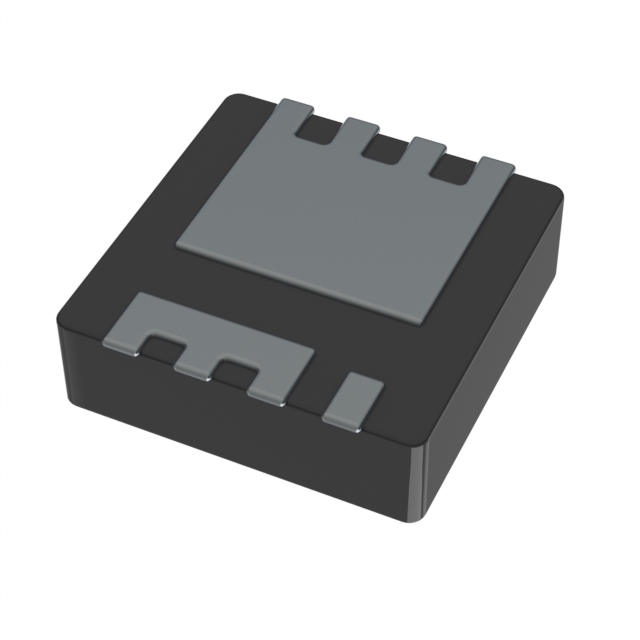

Same model may have multiple batches, images only for reference.
BSZ0994NSATMA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BSZ0994NSATMA1

Part No BSZ0994NSATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel 30 V 13A (Ta) 2.1W (Ta) Surface Mount PG-TSDSON-8-25
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Infineon Technologies
Series OptiMOS™
Packaging Reel - TR
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 7mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 7 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 890 pF @ 15 V
Power Dissipation (Max) 2.1W (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TSDSON-8-25
Package / Case 8-PowerTDFN
Base Product Number BSZ0994
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1477727-BSZ0994NSATMA1
Ultra Librarian 3D Model Ultra Librarian BSZ0994NSATMA1 CAD Model
