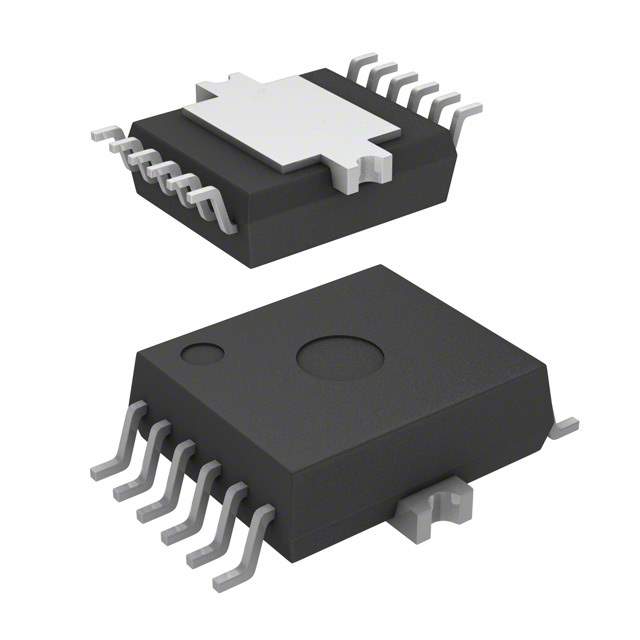

BTS5210L Infineon Technologies BTS5210L Real Image
Same model may have multiple batches, images only for reference.
BTS5210L Infineon Technologies BTS5210L Real Image
BTS5210L Infineon Technologies BTS5210L Real Image
Same model may have multiple batches, images only for reference.

BTS5210L

Part No BTS5210L
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Current Limit Switch High Side / IC HIGH SIDE PWR SWITCH PDSO-12
Datasheet
BTS5210L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 2
Output Type N-Channel
Voltage - Load 5.5 V to 40 V
Supply Voltage - Operating Not Required
Current - Output (Max) 1.8A
Rds On (Typ) 110 mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-DSO-12-9
Win Source Part Number 079743-BTS5210L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name BTS5210L
Introduction Date October 11, 2001
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BTS5210L CAD Model

Description

BTS5210L High-Side Power Switch

Featuring advanced control capabilities, the BTS5210L high-side power switch is ideal for modern electronic systems where precision and safety are paramount.

  • Applications:
    • Solar power systems
    • Battery management
    • Telecommunications equipment
  • Features and Benefits:
    • Flexible PWM control
    • Robust ESD protection
    • Temperature-dependent current limitation
  • Additional Details:
    • Low power dissipation
    • Wide operating temperature range
    • Efficient thermal management
