Same model may have multiple batches, images only for reference.

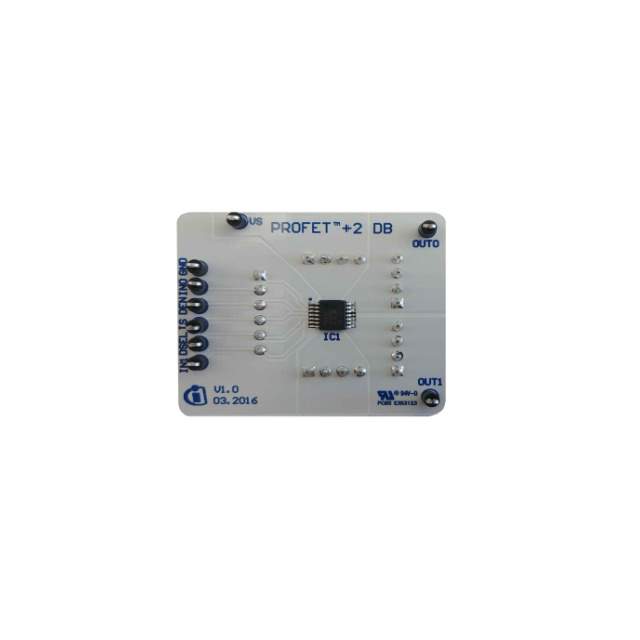

BTS72004EPADAUGHBRDTOBO1 Real Image
Same model may have multiple batches, images only for reference.

BTS72004EPADAUGHBRDTOBO1

Part No BTS72004EPADAUGHBRDTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Expansion Boards
Description BTS7200-4EPA DAUGHTER BOARD  /  BTS7200-4EPA Switch Power Management Platform Evaluation Expansion Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Series PROFET™+
Package Bulk
Type Power Management
Function Switch
Utilized IC / Part BTS7200-4EPA
Contents Board(s)
Base Product Number BTS72004
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names 448-BTS72004EPADAUGHBRDTOBO1,SP001782718
Standard Package 1
Win Source Part Number 1122181-BTS72004EPADAUGHBRDTOBO1
Ultra Librarian 3D Model Ultra Librarian BTS72004EPADAUGHBRDTOBO1 CAD Model

Description

The BTS7200-4EPA is a switch evaluation board from Infineon Technologies.

  • Application: power management
  • Series: PROFET™+
  • Packaging: bulk
  • Function: switch
  • IC/Part: BTS7200-4EPA
  • Suitable for: expansion boards, daughter cards, and other similar applications
  • Temperature Range: -40°C to 150°C
  • Supply Voltage: ±20V
