Same model may have multiple batches, images only for reference.

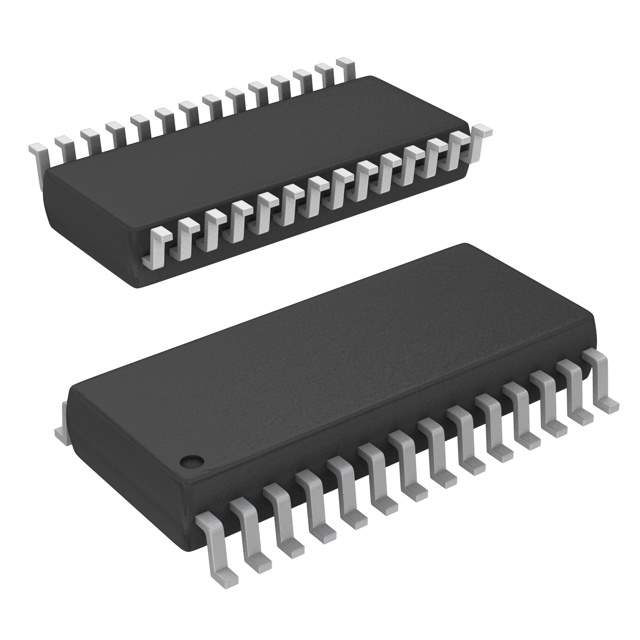

CY22E016L-SZ45XC Real Image
Same model may have multiple batches, images only for reference.

CY22E016L-SZ45XC

Part No CY22E016L-SZ45XC
Manufacturer Infineon Technologies
Catalog Memory
Description IC NVSRAM 16KBIT PARALLEL 28SOIC / NVSRAM (Non-Volatile SRAM) Memory IC 16Kbit Parallel 45 ns 28-SOIC
Datasheet
CY22E016L-SZ45XC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Infineon Technologies
Package Tube
Product Status Obsolete
Memory Type Non-Volatile
Memory Format NVSRAM
Technology NVSRAM (Non-Volatile SRAM)
Memory Size 16Kbit
Memory Organization 2K x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 45ns
Access Time 45 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number CY22E016
Standard Package 27
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 1348320-CY22E016L-SZ45XC
Ultra Librarian 3D Model Ultra Librarian CY22E016L-SZ45XC CAD Model

Description

The Infineon Technologies memory IC is a 16Kbit NVSRAM (Non-Volatile SRAM) IC.

  • Package: Tube
  • Standard Package: 27
  • Technology: Non-Volatile
  • Memory Type: Non-Volatile
  • Memory Size: 16Kbit
  • Access Time: 45 ns
  • Voltage Supply: 4.5V ~ 5.5V
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • HTSUS Code: 8542.32.0041
  • Status: Obsolete
  • RoHS: Non-compliant
