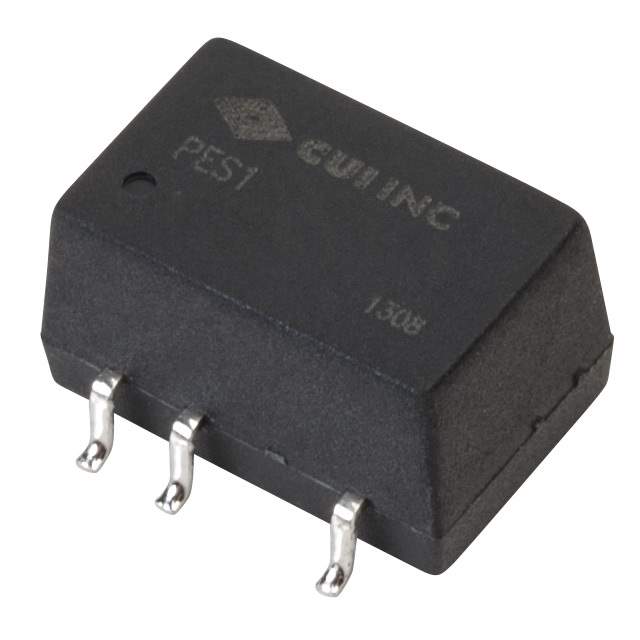

PES1-S5-S5-M-TR Real Image
Same model may have multiple batches, images only for reference.

PES1-S5-S5-M-TR

Part No PES1-S5-S5-M-TR
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
PES1-S5-S5-M-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series PES1-M (1W)
Package Tape & Reel
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting SMD (SMT)
Package / Case 8-SMD Module, 5 Leads
Dimension 0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm)
Approval Agency EN, UL
Standard Number 55024; 55032 Class A; 60950-1
Base Product Number PES1-S5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names PES1S5S5MTR,102-2697-6,102-2697-1,102-2697-2
Standard Package 500
Win Source Part Number 1226832-PES1-S5-S5-M-TR
Ultra Librarian 3D Model Ultra Librarian PES1-S5-S5-M-TR CAD Model

Description

The PES1-S5-S5-M-TR is a 1W isolated module DC-DC converter from the PES1-M series made by CUI Inc.

  • Features: SCP
  • Packaging: Tape and Reel
  • Application: ITE (Commercial)
  • Voltage Isolation: 3 kV
  • Maximum Output Current: 200mA
  • Maximum Input Voltage: 5.5V
  • Efficiency: 80%
  • Mounting Type: SMD (SMT)
  • Package/Case: 8-SMD module, 5 leads
  • Temperature Rating: -40°C ~ 105°C (With Derating)
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Approvals: EN and UL standards
