Same model may have multiple batches, images only for reference.

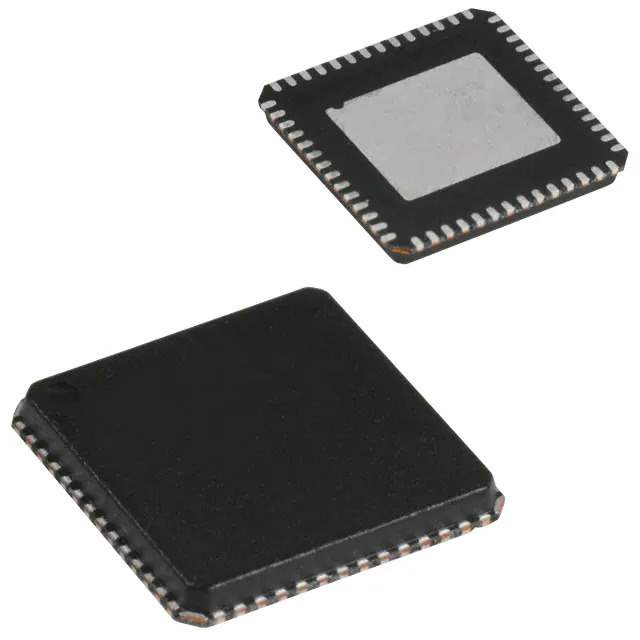

CY8C24794-24LFXIT Real Image
Same model may have multiple batches, images only for reference.

CY8C24794-24LFXIT

Part No CY8C24794-24LFXIT
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 56QFN / M8C PSOC?1 CY8C24xxx Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 56-QFN (8x8)
Datasheet
CY8C24794-24LFXIT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Infineon Technologies
Series PSOC®1 CY8C24xxx
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
Core Processor M8C
Core Size 8-Bit
Speed 24MHz
Connectivity I2C, SPI, UART/USART, USB
Peripherals POR, PWM, WDT
Number of I/O 50
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 5.25V
Data Converters A/D 48x14b; D/A 2x9b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 56-VFQFN Exposed Pad
Supplier Device Package 56-QFN (8x8)
Base Product Number CY8C24794
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 583122-CY8C24794-24LFXIT
Ultra Librarian 3D Model Ultra Librarian CY8C24794-24LFXIT CAD Model

Description

The CY8C24794-24LFXIT is an 8-bit microcontroller from the PSOC®1 CY8C24xxx series by Infineon Technologies.

  • Processor Core: M8C
  • Speed: 24MHz
  • Package: 56-VFQFN Exposed Pad
  • Standard Package: 2,000 pieces
  • I/O Pins: 50
  • Connectivity: I2C, SPI, UART/USART, USB
  • Peripherals: POR, PWM, WDT
  • Program Memory Size: 16KB (16K x 8)
  • Memory Type: FLASH
  • RAM Size: 1K x 8
  • A/D Converters: 48x14b
  • D/A Converters: 2x9b
  • Operating Voltage: 3V to 5.25V
  • Temperature Range: -40°C to 85°C (TA)
