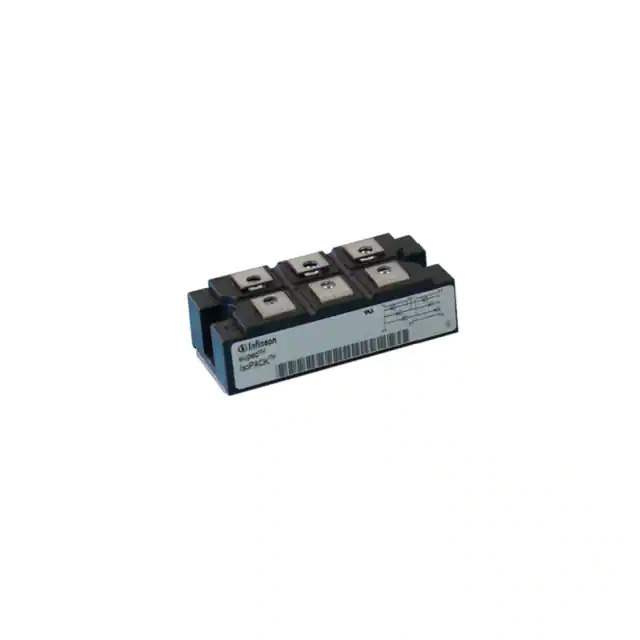

DDB6U145N16LHOSA1 Real Image
Same model may have multiple batches, images only for reference.

DDB6U145N16LHOSA1

Part No DDB6U145N16LHOSA1
Manufacturer Infineon Technologies
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE GP 1600V / Diode Array 3 Independent 1600 V Chassis Mount Module
Datasheet
DDB6U145N16LHOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Infineon Technologies
Package Tray
Product Status Active
Diode Configuration 3 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Voltage - Forward (Vf) (Max) @ If 1.43 V @ 150 A
Current - Reverse Leakage @ Vr 5 mA @ 1600 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number DDB6U145
Standard Package 4 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 846986-DDB6U145N16LHOSA1
Ultra Librarian 3D Model Ultra Librarian DDB6U145N16LHOSA1 CAD Model

Description

The DDB6U145N16LHOSA1 is a diode rectifier array designed for use in various applications from Infineon Technologies.

  • Diodes: Three independent diodes
  • Maximum DC Reverse Voltage: 1600V
  • Forward Voltage Drop: 1.43V @ 150A
  • Mounting Configuration: Chassis Mount
  • Suitable for: High Voltage Applications
  • Temperature Range: -40°C to 150°C
  • Product Status: Active
