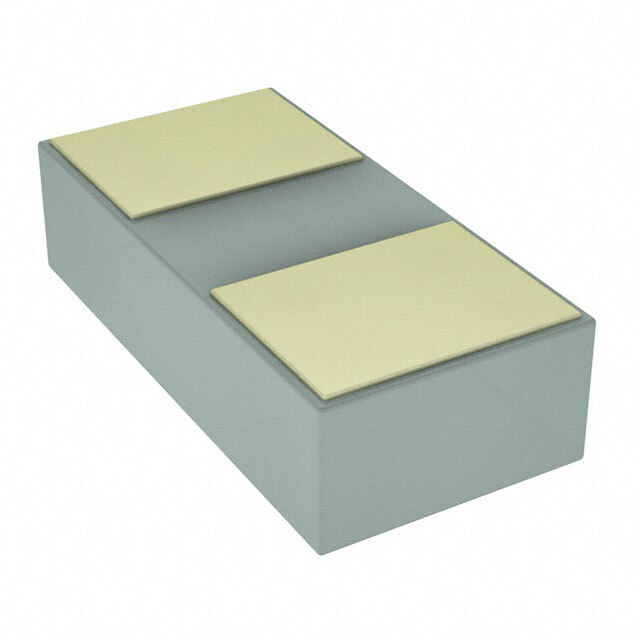

Same model may have multiple batches, images only for reference.
ESD128B1W0201E6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

ESD128B1W0201E6327XTSA1

Part No ESD128B1W0201E6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 13VWM 18.5VC WLL-2-1 / 18.5V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2-1
Datasheet
ESD128B1W0201E6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Infineon Technologies
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13V (Max)
Voltage - Breakdown (Min) 20V
Voltage - Clamping (Max) @ Ipp 18.5V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 53W
Power Line Protection No
Applications RF Antenna
Capacitance @ Frequency 0.3pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package WLL-2-1
Base Product Number ESD128
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names ESD128B1W0201E6327XTSA1CT,ESD128B1W0201E6327XTSA1TR,ESD128B1W0201E6327XTSA1DKR,SP001428734
Standard Package 15,000
Win Source Part Number 1057853-ESD128B1W0201E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD128B1W0201E6327XTSA1 CAD Model

Description

The Infineon Technologies ESD128B1W0201E6327XTSA1 is a zener diode that belongs to the TVS - Diodes family of circuit protection products.

  • Application: RF antenna, Voltage clamping, and Power line protection
  • Reverse Standoff Voltage: 13 V
  • Breakdown Voltage: 20 V
  • Package: Tape and reel
  • Standard Package: 15,000
