Same model may have multiple batches, images only for reference.

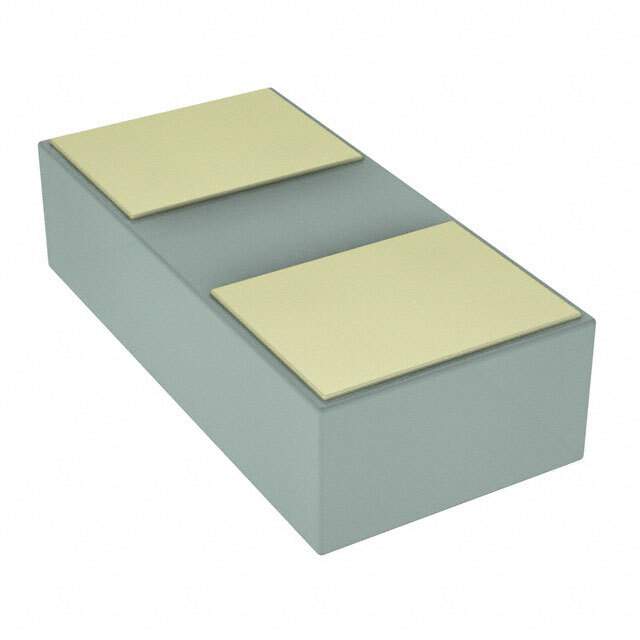

ESD130B1W0201E6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

ESD130B1W0201E6327XTSA1

Part No ESD130B1W0201E6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 18.5VC WLL-2-1
Datasheet
ESD130B1W0201E6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features 18.5V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount WLL-2-1
Manufacturer Infineon Technologies
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Surface Mount
Package 0201 (0603 Metric)
Case / Package WLL-2-1
Family Name ESD130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number ESD130B1W0201E6327XTSA1-ND, ESD130B1W0201E6327XTSA1TR, SP001594878, ESD130B1W0201E6327XTSA1DKR, ESD130B1W0201E6327XTSA1CT
Quantity per package 15000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871141-ESD130B1W0201E6327XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD130B1W0201E6327XTSA1 CAD Model

Description

The Infineon Technologies ESD130B1W0201E6327XTSA1 is a TVS diode manufactured by Infineon Technologies.

  • Family: ESD130 family
  • Operating Temperature Range: -55°C to 125°C
  • Clamp: 18.5V clamp
  • Ipp: 2.5A (8/20μs)
  • Package: 0201 (0603 metric) package
  • Mounting: surface-mounted
  • ECCN: EAR99 compliant
  • Popularity: medium popularity
  • Package Contains: 15000 units
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 19 weeks
  • REACH: unaffected
  • HTSUS: 8541.10.0080
