Same model may have multiple batches, images only for reference.

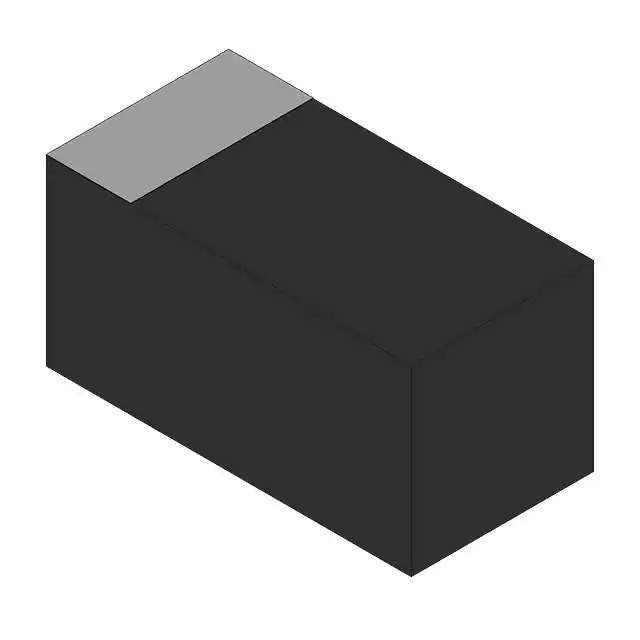

ESD3V3U1U-02LS Real Image
Same model may have multiple batches, images only for reference.

ESD3V3U1U-02LS

Part No ESD3V3U1U-02LS
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TRANS VOLTAGE SUPPRESSOR DIODE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Infineon Technologies
Package Bulk
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 5V
Voltage - Clamping (Max) @ Ipp 28V (Typ)
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power Line Protection No
Applications DVI, Ethernet, HDMI, USB
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package PG-TSSLP-2-1
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 589942-ESD3V3U1U-02LS
Ultra Librarian 3D Model Ultra Librarian ESD3V3U1U-02LS CAD Model

Description

The ESD3V3U1U-02LS is a TVS diode designed for circuit protection against transient voltage events.

  • Applications: DVI, Ethernet, HDMI, and USB
  • Protection Against: voltage surges and spikes
  • Reverse Standoff Voltage: 3.3V
  • Breakdown Voltage: 5V
  • Package: compact surface mount package
  • Clamping Voltage: high
  • Capacitance: low
  • Signal Integrity: offers effective protection without compromising signal integrity
  • Status: active product
  • Industries: telecommunications, automotive, and consumer electronics
  • Solution: reliable and cost-effective
