ESD5V3U4U-HDMI E6327

Part No ESD5V3U4U-HDMI E6327
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir 5.3V 9-Pin TSLP T/R / TVS DIODE 5.3VWM 28VC TSLP9
Datasheet
ESD5V3U4U-HDMI E6327 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Cut Reel
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.3V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 28V (Typ)
Peak Pulse Current(Ippm) 3A (8/20μs)
Applications Ethernet, HDMI
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)

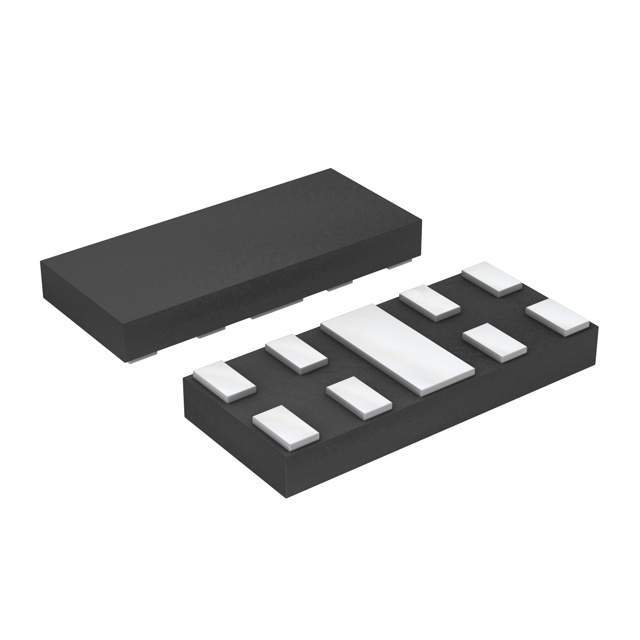

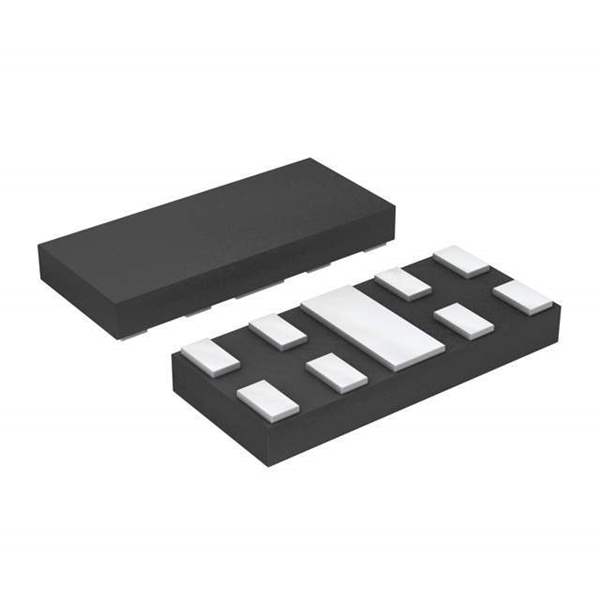

Case / Package PG-TSLP-9
Win Source Part Number 015678-ESD5V3U4U-HDMI E6327
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ESD5V3U4UHDMI
Introduction Date January 01, 2000
ECCN EAR99
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian ESD5V3U4U-HDMI E6327 CAD Model

Description

Product Overview

The ESD5V3U4U-HDMI E6327 is an advanced ESD protection diode tailored specifically for HDMI interfaces. It offers superior clamping performance during an electrostatic discharge (ESD) event, ensuring the integrity and reliability of attached devices.

Features and Benefits

  • Low capacitance for high-speed data lines
  • Designed for protection up to 15kV ESD
  • Minimizes signal degradation

Applications

  • High-definition multimedia interfaces
  • Telecommunications equipment
  • Consumer electronics

Additional Details

This component is crucial for protecting HDMI ports from ESD threats, ensuring longevity and improved performance of multimedia components.
