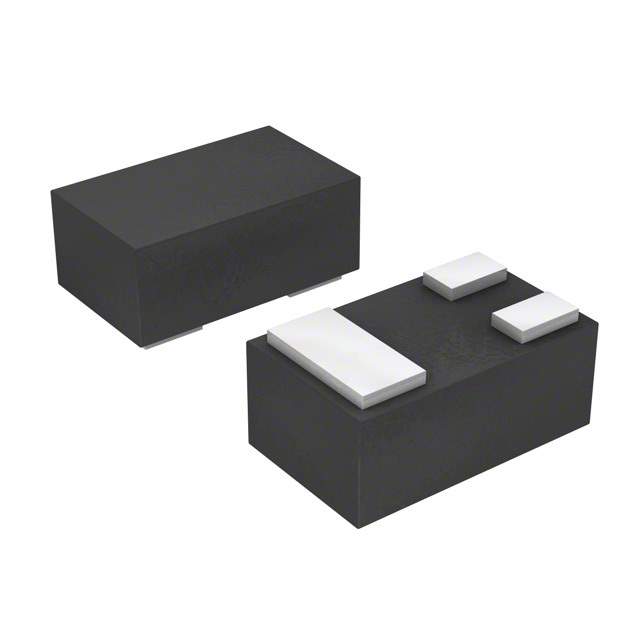

The ESD8V0L2B-03L is a TVS (Transient Voltage Suppression) diode manufactured by Infineon Technologies. It's designed to protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage events. This particular diode is optimized for applications requiring a higher standoff voltage, providing robust protection in a compact package.

Applications:

• Microcontroller Protection: Safeguarding microcontroller I/O pins from ESD strikes.
• Sensor Interfaces: Protecting sensitive sensor circuits from voltage transients.
• Power Line Protection: Providing ESD protection for low-voltage power lines.
• Communication Ports: Protecting RS-232, RS-485, and other communication interfaces.
• General Purpose I/O Protection: Ensuring the reliable operation of various input/output interfaces.

Features:

• High Stand-off Voltage: Offers a higher working voltage, suitable for 5V systems.
• Low Clamping Voltage: Minimizes stress on protected components during ESD events.
• Low Leakage Current: Reduces power consumption and extends battery life in portable devices.
• Small Form Factor: Enables compact circuit designs.
• Bidirectional Protection: Provides symmetrical protection against both positive and negative ESD strikes.

Benefits:

• Improved System Reliability: Protects electronic circuits from ESD damage, increasing overall system reliability.
• Extended Product Lifespan: Reduces the risk of component failure due to ESD events.
• Minimized Downtime: Prevents system malfunctions and failures caused by transient voltage events.
• Increased Design Flexibility: Small package allows for easy integration into various applications.
• Cost-Effective Solution: Provides a cost-effective means of protecting sensitive electronics.

Additional Details:

The ESD8V0L2B-03L features a typical breakdown voltage around 8V, making it suitable for protecting circuits operating at or near 5V. It is compliant with industry-standard ESD protection levels, including IEC 61000-4-2. The low clamping voltage ensures that the voltage seen by the protected component remains within safe operating limits during an ESD event. The device is available in a small leadless package, which minimizes parasitic inductance and improves clamping performance. The bidirectional characteristic simplifies circuit design and reduces component count. This TVS diode is an essential component for ensuring the robust and reliable operation of electronic systems in various environments. The Infineon manufacturing process ensures consistent quality and performance. It also features low dynamic resistance.
