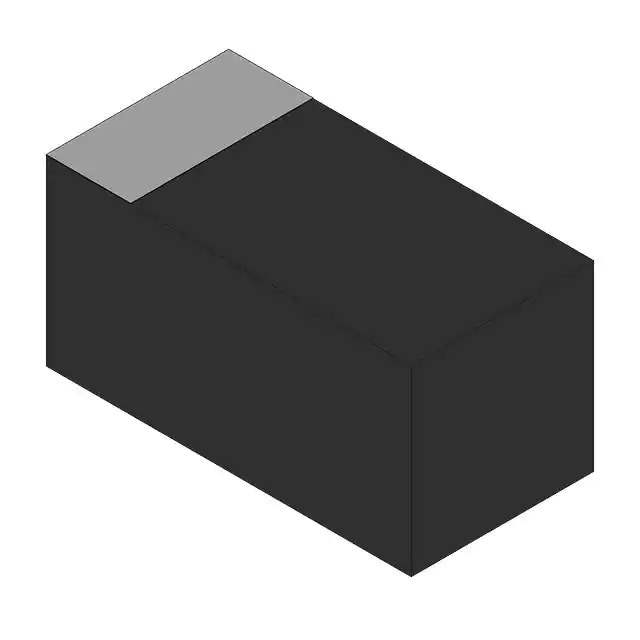

ESD8V0R1B-02LS Real Image
Same model may have multiple batches, images only for reference.

ESD8V0R1B-02LS

Part No ESD8V0R1B-02LS
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TRANS VOLTAGE SUPPRESSOR DIODE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Infineon Technologies
Series ESD8V0R1B
Package Bulk
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 14V (Max)
Voltage - Breakdown (Min) 14.5V
Voltage - Clamping (Max) @ Ipp 28V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power Line Protection No
Applications Automotive, DVI, Ethernet, Telecom, USB
Capacitance @ Frequency 4pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package PG-TSSLP-2-1
Standard Package 10,377 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 589984-ESD8V0R1B-02LS
Ultra Librarian 3D Model Ultra Librarian ESD8V0R1B-02LS CAD Model

Description

The ESD8V0R1B-02LS is a zener-type transient voltage suppressor (TVS) diode used for circuit protection.

  • Series: ESD8V0R1B
  • Package: Bulk
  • Applications: Automotive, DVI, Ethernet, telecom, and USB systems
  • Channel Protection: Bidirectional
  • Reverse Standoff Voltage (Maximum): 14V
  • Breakdown Voltage (Minimum): 14.5V
  • Clamping Voltage @ Peak Pulse Current (Ipp): 28V
  • Capacitance: 4pF @ 1MHz
  • Peak Pulse Current: 1A (10/1000µs)
  • Mounting Type: Surface Mount
  • Package / Case: 0201 (0603 Metric)
  • Manufacturer: Infineon Technologies
  • Status: Obsolete
