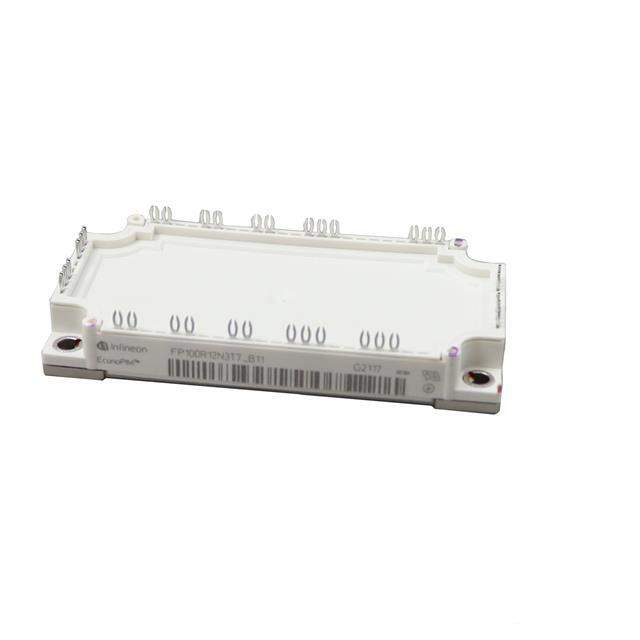

FP100R12N3T7B11BPSA1 Real Image
Same model may have multiple batches, images only for reference.

FP100R12N3T7B11BPSA1

Part No FP100R12N3T7B11BPSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description LOW POWER ECONO AG-ECONO3B-711  /  IGBT Module Trench Field Stop Three Phase Inverter 1200 V 100 A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Series EconoPIM™ 3
Package Tray
IGBT Type Trench Field Stop
Configuration Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 100 A
Input Standard
NTC Thermistor No
Base Product Number FP100R12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 448-FP100R12N3T7B11BPSA1,SP005402466
Standard Package 10
Win Source Part Number 1013914-FP100R12N3T7B11BPSA1
Ultra Librarian 3D Model Ultra Librarian FP100R12N3T7B11BPSA1 CAD Model

Description

The FP100R12N3T7B11BPSA1 is a three-phase inverter IGBT transistor module from Infineon Technologies. It is part of the Transistors - IGBTs - Modules category and is part of the EconoPIM™ 3 series.

  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 100A
  • NTC Thermistor: No
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS: 8541.29.0095
